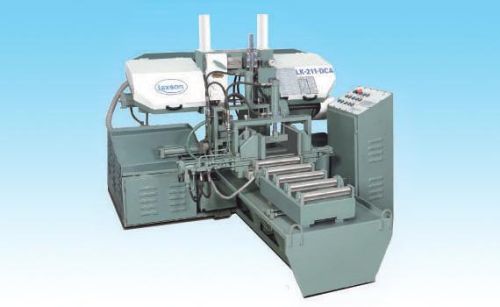

Automatic Bandsaw Machine

Listing ID #1366070

Get Latest Price

Blade Dimensions(mm)3760 x 27 x 0.9
Coolant Pump0.12 / 0.16 / 2800 RPM
Power Req. - Saw Drive (440V AC, 50Hz)1.5 / 2.0 / 1440 RPM 0.75 / 1.0 / 1440 RPM
Coolant Tank Capacity80
Supply Type Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Product Details

Coolant Pump 0.12 / 0.16 / 2800 RPM
Hydraulic Tank Capacity 80
Coolant Tank Capacity 80
Square (mm) 240
Blade Linear Speed(mm) 20 / 30 / 40 / 50 / 75
Wire Brush Motor 0.18 / 0.25 / 1440 RPM
Round (mm) 240
Power Req. - Saw Drive (440V AC, 50Hz) 1.5 / 2.0 / 1440 RPM 0.75 / 1.0 / 1440 RPM
Bundle Cutting W x H mm (*optional) 210 x 150
Dimensions (LxWxH) mtr. 2 x 2.5 x 1.3
Blade Dimensions(mm) 3760 x 27 x 0.9
Shuttle Bar Feed Stroke (mm) 350
Weight (kg) 1900

STANDARD FEATURE & ACCESSORIES

PLC control for all electric and hydraulic functions
Shuttle Type Automatic Job Length Feeding
Floating shuttle vise for handling of bent job
Automatic work height control and fast approach
Power driven Chip removal Wire brush assembly
Hydraulic Blade Tension
Split main vise for better gripping
Idler Wheel Motion Detector with Blade Stalling and Breakage shut off
Roller Bearing / Carbide wear pad Blade guide system
Bi Metal Bandsaw Blade

OPTIONAL ACCESSORIES

A.C. Drive for Infinitely variable speed control
Bundle cutting attachment
Chip Conveyor
Job Roller Stand
Wire Brush
Bi-metal Bandsaw blade
Variable Vise pressure for thin walled job

Interested in this product? Ask for more details & Latest Price from seller

Send Enquiry

Company Details

The Company was started in 1930's and situated at Surendranagar, (Gujarat, India) 120km. away from Ahmedabad the mega city.
Late Sri Laxman Kadvabhai Mistry was the founder of the Company whose expreience of machine tool engineering and technical knowledge was a foundation stone for the Company.
In 1960's it was the first time in India the Company started Bandsaw Machines in keeping mind the requirements of Engineering Industries of India. M/s. Batliboi & Co Ltd. was our sole selling agent during 1960 to 2000.
At present the Company produces 25 number of Machine models for Metal Cutting Bandsaw machines of various cutting capacities. We have manufactured more than 11000 machines up to 2012. The Company produces Manual and Automatic, Semi Automatic operated Bandsaw machines having cutting capacitiy ranges from 175 mm to 2500 mm. With the support of thier valuable customers the Company has produced more than 9100 machines. (till Dec.2008)
The Company has effecient team of well experienced technocrats to meet the unavoidable technology of 21st century.
