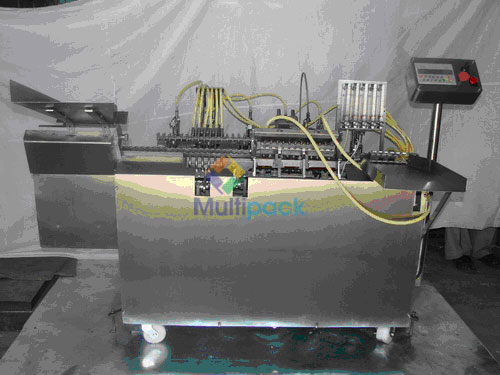

Contact SupplierAutomatic Ampoule Filling & Sealing Machine Bhagwati introducing a series of state of art technology Automatic Ampoule Filling & Sealing Machines, for performance and GMP demanding customers.
The machine built on principle of Slant travel of ampoules while filling and sealing. To take care of vide variation of ampoule neck dimensions, thicknesses and ovality of available Indian ampoules.
The unit built on S. S. Square pipe frame and totally encompassed with S. S. Coverings, in pleasing matt finish, Further, the large opening available at the bottom side for ease of absolute cleaning.
The pendant type electrical control panel is lifted form machine for ease of operation and safety.
OPERATION :The sterilized ampoule tray ran be directly loaded in to slant hopper of the unit. The Synchronized star wheel delivers ampoules, one by one on moving eccentric ampoule rack in four or Four’s or Four’s.
During the stoppage of rack sequentially pre-gassing, filling, post gassing, pre heating (for Four and double head only) and final sealing I annealing is achieved.
At the end to the rack, optional synchronized pusher pushes out ampoules in to tray in vertical position.
Â
CHANGE PARTSThe Basic Unit Fitted With Parts, Suitable For any One Size Of Ampoule And Any One Fill Size Syringe1 Syringes.
In the event of change over of each size of ampoule, following change parts are required.
Model No. | SBAFS-55 | SBAFS-100 | SBAFS-150 | SBAFS-200 |
No. of Head | Two | Four | Six | Eight |
Optimum Output / Min. | 40 to 55 per minute | 80 to 100 per minute | 100 to 150 per minute | 150 to 200 per minute |
Ampoule Size / Range | 01 ml to 10 ml | |||
Powder Reqd. | 0.75 HP | 0.1 HP | 1.5 HP | 0.1 H.P. |
Dimensions (L) x (W) x (H) |
915 mm (L) x 760 mm (W) x 965 mm (H) | 1200 mm (L) x 1070 mm (W) x 965 mm (H) | 1400 mm (L) x 1200 mm (W) x 1050 mm (H) | 1600 mm (L) x 1070 mm (W) x 965 mm (H) |
