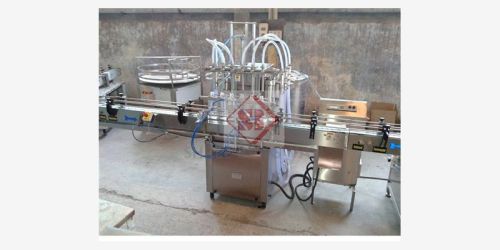

Automatic 6 Head Volumetric Liquid Filling Machine

Listing ID #3828177

Get Latest Price

ApplicationFilling Liquids in to the Bottles /Containers
Power2.5 H.P / 230 V.AC
Operating PanelRelay Card (Push Button Type )
Volume Capacity (Range of Syringe)5ml to 1000 ml with help of change parts
Supply Type Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Product Details

Application Filling Liquids in to the Bottles /Containers
Power 2.5 H.P / 230 V.AC
Air Pipes SMC / Festo / Janatics
Main Chain Sprocket Duplex
Electrical Wiring Ferrule Numbering on all the wires with Proper Markings
Proxy Autonix / Pulset
Conveyor Stainless Steel 304
Sensors Leuze /Sick / Panasonic
Operating Panel Relay Card (Push Button Type )
Machine main base frame Mild Steel Angles
Machine Weight Approx 450 Kgs
Up Down Movement Mechanical (Cam Based)
Slat Chain Size 97mm, Pitch - 3.5”, Stainless Steel 304
Non Contact Parts Stainless Steel / Mild Steel / Aluminum / Teflon (Whichever is applicable)
Production Speed Per Hour 4800 to 5400 containers per hour Speed Depends upon the Number of Filling Heads, Liquid Foaming Nature, Filling Volume, Neck Size)
Slat Chain thickness 3mm
Phase Single Phase
Suitable for Products Free Flowing Liquids
No Bottle – No Filling With the help of Sensor
Wires & Cables Labb
Pneumatics SMC / Festo / Janatics
Working Height 860mm ( +/-50 mm)
Pulley 3 Step
By-Pass Pipes Silicon Pipes
Suck Back System NRV Based / Drip Free Nozzles
Bottle Stopper Pneumatic Based
Compressed Air Required 6 bar pressure 0.5 CFM
Number of Filling Heads 6 Heads
Working Direction Left to Right - Linear
Electrical Components ABB / Delta /Spectra
Suitable for Packing Material HDPE / PET / GLASS / METAL TIN / Aluminum Bottles
Machine Gearbox Make Ambica (Customerised) Ratio: 50:1
Machine Motor Make 2 HP 1440 RPM Pushpak (Customerised)
Machine Name Automatic Volumetric Liquid Filling Machine
Conveyor Motor 0.5 HP 1440 RPM Bonfiglioli
Product Contact Parts Stainless Steel 316
Machine Coverings Complete in S.S. 304
Volume Capacity (Range of Syringe) 5ml to 1000 ml with help of change parts
Emergency Stop Emergency push button on conveyor
Filling Volume Accuracy +/-1 %
Bearings SKF / Nachi (USA) / Timken (USA)
Material Collection Tray at the bottom of Conveyor Stainless Steel 304
Plating(Wherever Applicable) Zinc / Hard Chrome / Blackening
Volume Adjustment With the Help of Volume Adjustment Block
Conveyor Motor Make 0.5 HP Bonfiglioli
Conveyor Guide Stainless Steel 304 Rod (10mm Round Bar)
Filling System Volumetric Syringe Based
Conveyor Gear Box Make Bonfiglioli Ratio: 50:1
Machine Dimension Approx 8 (L) x 6 (W) x 6 (H) – in Feet
VFD Make Delta / ABB
In let & Out Let Pipes Braded Hose Pipes

We are leading supplier of this product.

Interested in this product? Ask for more details & Latest Price from seller

Send Enquiry

Company Details

Multipack Machinery, One Of The Leading Manufacturer And Exporter Of Ampoule Sticker Labeling Machine, Bottle Sticker Labeling Machine, Front & Back Labeling Machine And Other Pharma Machinery And Parts. We Have Well-Planned And Well-Equipped State Of The Art Advance Manufacturing Facility And Separate Administrative Offices With Worldwide Network Of Agents And Representatives.

Nature of Business Manufacturer / Exporter / Supplier
Year of Establishment 1998
