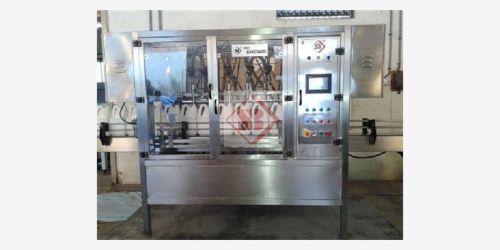

Automatic 4 Head Oil Filling Machine, Power : 2 H.P / 230 V.AC

Listing ID #3828196

Get Latest Price

Power2 H.P / 230 V.AC
PhaseSingle Phase
Compressed Air Required6 bar pressure 0.5 CFM
Electrical WiringFerrule Numbering on all the wires with Proper Markings
Supply Type Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Product Details

Power 2 H.P / 230 V.AC
Phase Single Phase
Compressed Air Required 6 bar pressure 0.5 CFM
By-Pass Pipes Silicon Pipes
Application Filling Liquid in to the Bottles /Containers
Material Collection Tray at the bottom of Conveyor Stainless Steel 304
Bottle Stopper Pneumatic Based
Conveyor Stainless Steel 304
HMI + PLC Delta / Panasonic
Electrical Wiring Ferrule Numbering on all the wires with Proper Markings
VFD Make Delta / ABB
Working Height 860mm ( +/-50 mm)
Air Pipes SMC / Festo / Janatics
Level sensor for hopper Leuze /Sick / Panasonic
Cabinet Stainless Steel Structure with Acrylic cover
Prevention of Dropping Special nozzle with NRV Valve
Sensors Leuze /Sick / Panasonic
Filling System Flow meter / gear pump
Machine Dimension Approx 12 (L) x 8 (W) x 10 (H) – in Feet
Hopper Stainless Steel 316
Slat Chain thickness 3mm
Volume Adjustment HMI + PLC (one time setting)
Dropping Collection Try Pneumatic Based
Machine Coverings Complete in S.S. 304
Machine Weight Approx 400 Kgs
Electrical Components ABB / Delta /Spectra
Conveyor Guide Stainless Steel 304 Rod (10mm Round Bar)
Non Contact Parts Stainless Steel / Mild Steel / Aluminum / Teflon (Whichever is applicable)
Working Direction Left to Right - Linear
Conveyor Motor Make 0.5 HP Bonfiglioli
Product Contact Parts Stainless Steel 316
Slat Chain Size 97mm, Pitch - 3.5”, Stainless Steel 304
Emergency Stop Emergency push button on conveyor
Filling Volume Accuracy +/-0.5 %
Machine Motor Make 1 KW
Proxy Autonix / Pulset
Suitable for Packing Material HDPE / PET / GLASS / METAL TIN / Aluminum Bottles
Conveyor Gear Box Make Bonfiglioli Ratio: 50:1
Production Speed Per Hour 3200 containers per hour Speed Depends upon the Number of Filling Heads, Liquid Foaming Nature, Filling Volume, Neck Size)
Up Down Movement Pneumatic system
Operating Panel HMI + PLC
Conveyor Motor 0.5 HP 1440 RPM Bonfiglioli
Machine main base frame Mild Steel Angles
Machine Name Automatic Oil Liquid Filling Machine
Wires & Cables Labb
Suitable for Products Free Flowing Liquids
Volume Capacity 100ml to 5000 ml with help of change parts
Pneumatics SMC / Festo / Janatics
No Bottle – No Filling With the help of Sensor
Number of Filling Heads 4 Heads
Bearings SKF / Nachi (USA) / Timken (USA)
Plating(Wherever Applicable) Zinc / Hard Chrome / Blackening
In let & Out Let Pipes Braded Hose Pipes

We are leading supplier of this product.
