Contact SupplierMasibus LC5296-AT LC5248E-AT LC5296L-AT LC5248L-AT PID Controller series is designed to offer outstanding control performance in a compact package providing a comprehensive solution for a wide variety of applications: such as plastic manufacturing, packaging machinery and food processing applications requiring precise heatcool control and processes protection alarming.

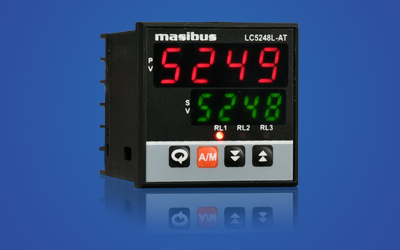

LC5248L-AT PID Controller With a fast responsive PID auto-tuning algorithm it is equipped with HeatCool relay or SSR output for control function. Auto-tuning adjusts the PID parameters for the desired set-point according to the current process dynamics so it has no harmful effect on the current operation. It has the flexibility to switch control to On-Off or Manual mode for non-critical applications.
LC5296L-AT PID controller has 3 outputs providing a combination of 2 Relay (alarm output) or SSR (control output).Compact size and simple programming makes the installation and operation of Controller easier and user-friendly.
Features
Auto-tune PID
Universal input (TC, RTD, Volts, mA)
15 Alarm configurations
RS485 Modbus Communication (optional in LC5296-AT LC5248E-AT model)
Retransmission Output (optional in LC5296-AT LC5248EAT model)
Relay SSR control output option
Password protected configurations
