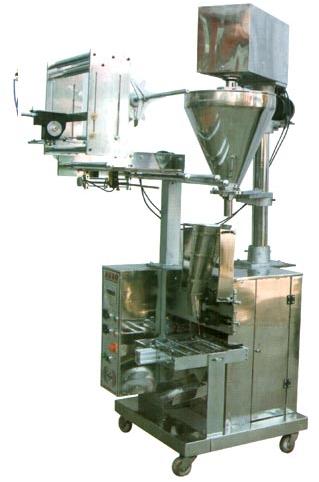

Contact Supplierwe are offering intermitten auger filler. features & advantages (amp 302)
product applications powder, granules
sealing type center sealing
roll width width: 140mm to 400mm
feeding system auger filler/volumetric cup filler/weigh filler
machine motor 1/2 hp, single phase, 50hz
electrical supply 220v, ac, single phase, 50hz
electrical supply 220v, ac, single phase, 50hz
packing film any heat sealable laminated roll
machine control through plc (programmable logic control)
photocell registration system camera controlled by pic.
contact parts stainless stell
heater load 150 w x 2 nos; 300 w x 2 nos
packing film pulling through electromagnetic clutch and brake
temperature controller pid based
machine speed 25-50 pouches per min (depends upon quantity and product)
power consumption 2 kw approx
machine motion intermittent
machine weight 300kg approx
machines dimensions height 84 inch x length 42 inch x width 42 inch
optional features (at an extra cost) batch coding device nitrogen flushing systems batch cutting
air supply needed 6 cfm
