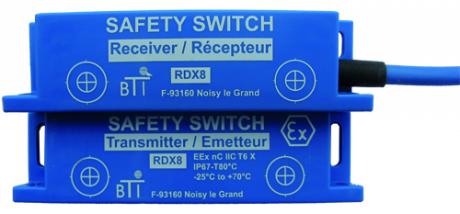

We are offering atex approved safety switches
technical datas anatom 78s eex
coding: acotom®2 process
stromversorgung: 12v dc
power consumption: 30 ma dc
safety contacts: 2 no, static, insulated
auxiliary output: 1 nc pnp 15 ma
protection class: ip67
temperature: -20°c to +40°c
switching distance: 10 mm
hysteresis: 4 mm, typical
dimensions emitter : 92 x2 3 x 18 mm
dimensions receiver : 92 x 23 x 23 mm
housing: polyamid 6
weight: receiver 120 g; emitter 80 g
safety category: cat.4 acc. To en954-1
ple acc. To en iso13849-1
standards: en50014, en50020, en50039, en50284, en50281-1-1, en iso13849 -1, iso12100-1, iso14119, en13980, en60204-1
