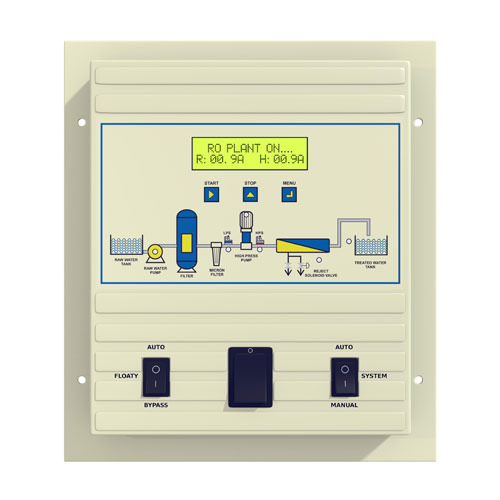

Contact SupplierWe offer high performance astero logic controller that are widely used to automate an assortment of industrial processes.
Features:
astero microprocessor based panels are ideally suited for small and medium sized ro plants
complete operating logic of the process is preprogrammed
notification for filter backwash and due plant service
inputs from lps, hps and level switch (ls)
four outputs in the correct operating sequence namely raw water pump (rwp), high pressure pump (hpp) flushing solenoid valve (rl2) and cleaning pump (cp) doser
the electronics take care of required motor protection such as overload, dry running, single phasing and high conductivity
debounce time. (in built debounce time to avoid chattering of high pressure pump contactor due to initial dipping in suction pressure)
time based flushing
new improved ro control panels with additional features such in built conductivity, one auxiliary input (can be configured as rwlvl, rl2, orp, dosing, tp ip)
other application:
auto multiport valve
hydroneumatic
ultra filtration
waste water treatment
technical specifications:
panel configuration
11
13
33
overall size
230(h) x 255(v) x 130(d)
cutout size
190(h) x 222(v)
display
16 x 2 alphanumeric display
mounting
wallpanel mount
raw water pump
2 hp 1 î¦
2 hp 1 î¦
5 hp 3 î¦
high pressure pump
2 hp 1 î¦
5 hp 3 î¦
5 hp 3 î¦*
transfer pump
n.a.
Input
5 switch inputs (rwt level, lps, hps, twt level, dosing tank level or orpm fault or rl2) conductivitytds, flow input (with totalizer)
output
4 outputs viz rwp, hpp, flush solenoid valve & aux op or third pump aux op can be configured as alarm or pump on or doser
all dimensions are in mm
higher hp. Optional
