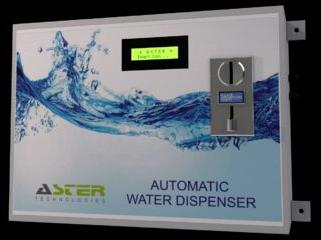

Automatic Water Dispensers - Coin Based

With just inserting coin user will be able to get purified water 24 X 7. The system comes with safeties to avoid theft. Inbuilt notification for tank low level. On inserting a coin dispenser opens the Solenoid Valve till the preset quantity of water is dispensed.

KEY ATTRIBUTES
MS powder coated box with proper locks
Hassle free uninterrupted purified water 24 X 7
Can dispense different batches according to different coin
Dispenses exact quantity of water in every batch
Separate cabinate with lock for coin collection
No need of operator for water filling
Operates even at a 2 feet head
Minimum jar filling time
Easy Installation
Dual line backlit display for
Dispenser status
Number of jars dispensed & cash collected
Low power consumption can even work on UPS
Inbuilt low rate input
Password protected settings
All values are settable at site by front keypad,user can set batch volume, batch rate at site.
Optional computer interface with RS485 output for remote data transfer
Flow sensor with ceramic bearing for superior loe flow performance
TECHNICAL SPECIFICATION
Physical dimensions 400(H) x 325(V) x 200(D)mmEnclosure MS Powder coated box IP-50Mounting FieldSupply power 230 V A.C.Accuracy ± 2% FSDSettings Using front panel keypadInput From sensorOutput 1.Supply for solenoid valve
2.RS 485 for remote data logging

SMS MODEM
Dispenser comes with optional SMS modem to transfer data through SMS. The modem is configured to suit SIM card of any Telecom Service Provider. It will send information to up to 3 mobile numbers. The SMS frequency and mobile numbers are user settable. The modem will send plant status with following parameters
PARAMETERDispenser will send below parameter in status message.
• Number of jars filled
• Coin collected
