Aspirating smoke detector

Listing ID #4214105

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Fire Project has make several installation of SecuriRAS ASD 535 aspirating smoke detector, which is the new generation of highly sensitive, active smoke detection systems. It offers....

View More Details

Send Enquiry

Product Details

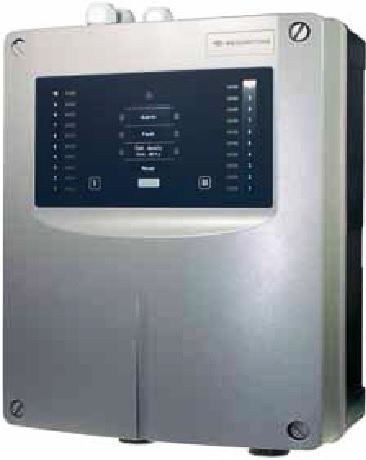

Fire Project has make several installation of SecuriRAS ASD 535 aspirating smoke detector, which is the new generation of highly sensitive, active smoke detection systems. It offers application-specific sensitivity adjustment alongside pre-signalling and pollution analyses. The SecuriRAS ASD 535 detects even minuscule glowing and smouldering fires and can be deployed practically anywhere.

Typical applications include:

• Room surveillance

• High-rack warehouses and distribution centres

• Archive rooms

• Intermediate ceilings and raised floors

• Large halls

• Museums, galleries, theatres, cinemas

• Cultural artefact collections, historical buildings

• Airports

• Informatics and computer centres

• Telecommunication centres

• Laboratory and research centres

• Electronic measuring rooms

• Transformer rooms

• Clean rooms

• Refrigerated warehouses

• Property surveillance

• Telecommunication facilities

• High and low-voltage distribution cabinets

• Display cases

• IT installations

• CNC control systems

• Invisible applications

• Protection of cultural assets

• Prison cells

Select Fire Projects for new implementation of Securiton ASD - 535 aspirating smoke detection is most effective way for very early smoke detection application for small to medium size datacenter, UPS room, medical facilities, and telecommunication facilities. We support our clients from Designing up to Commissioning up to AMC. We also provide AMC–Annual Maintenance Contracts for all types of Fire & security Systems. If you required new installation or AMC of VESDA system, contact Fire Projects today!

FEATURE

1 or 2 sampling lines with separate air flow monitoring

• EN 54-20, Class A, B, and C

• VdS certified calculation software: ASD PipeFlow enables efficient, asymmetrical pipe layout

• Resolution < 0.001%/m

• Insensitive to pollutants thanks to particle suppression (patent pending)

• Auto-learning function

• High performance suction (> 400 Pa vacuum)

• Low noise level, compliant with ISO 11690-1

• 5 alarm levels (3 pre-alarms and 2 alarms)

• Refined smoke detection thanks to high-dynamic (HD) sensors

specification

Permitted voltage range/Operating current : 10.5–30 V DC/290 mA typical (at 24 V DC)

• Alarm sensitivity: 0.02%/m–10%/m (0.00087–0.457 dB/m)

• Pre-signals 1, 2 and 3, programmable in 10% increments: 0.002–9%/m

• Interfaces (alarm, fault, programmable), service interface: 3 relays/open collector

• Ambient operating temperature: –30 °C to +60 °C

• Protection class: IP 54 ICE 529

• Housing dimensions: 263 × 397 × 146 mm

• Housing colour: Light grey RAL 2807005, Charcoal RAL 3002005

• Housing material/Weight: ABS blend, UL 94-V0/Approx. 3850 g

• Display and control Standard: 1 LED (green) POWER, 1 or 2 LEDs (yellow) Fault

• Deluxe design: supplementary 10 or 20 LEDs (yellow) for smoke level display

• Event data memory: Max. 430 events
