Contact SupplierASME B16.47 / B16.36 / B16.9 / B16.5 Pipe Flanges Exporter & Dealer in India ASME B16.47 Flanges, ASME B16.36 Slip on Flanges, ASME B16.9 Socket Weld Flanges, ASME B16.5 Threaded Flanges & ASME B16.9 Blind Flanges Manufacturer & Supplier

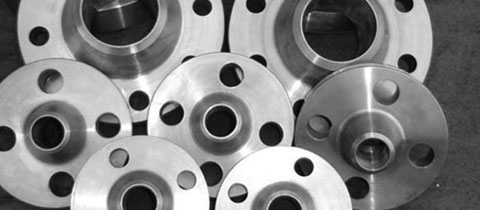

Nakshatra Steel & Alloys is an exclusive manufacturer of ASME Flanges. We have enough stock of all types of flanges like ASME Slip on Flanges and ASME Weld Neck Flanges. It is our pride to say that ASME Pipe Flanges of ours are exported to many countries across the world.
We use quality material to manufacture corrosion resistant Stainless Steel ASME Flangesand Carbon Steel ASME flanges. To shut the openings of pressure vessels and pipes, most of the companies prefer our ASME Blind flanges. Our ASME Socket Weld Flanges are initially put into a pipe and then fillet welded thoroughly. The Specialty of our ASME Threaded Flanges is, they can be fixed with a valve without any kind of welding.
Where frequent disconnecting of pumps and valves is required, our ASME Lap Joint Flanges come into limelight. ASME Orifice Flanges are employed to calibrate the flow of liquids and gases inside a pipe. If you want to connect or disconnect a piping system properly, our ASME Spectacle Blind Flanges does the job. Our ASME Reducing Flangesconnect two different sized pipes with ease. Our ASME Forged Flanges serve the purposes like cleaning and inspection.
We use high quality raw material while mass producing ASME B16.47 Class 150 Flanges,ASME B16.47 Class 300 Flanges, and ASME B16.47 Class 400 Flanges and also use modern mechanical techniques to design. Contact us with your requirements and we assure you to offer products that meet your specific needs and demands, with an unparalleled quality and service.
Material | : | 1. Stainless Steel ASTM/ASME A/SA182 F304, F304L, F316, F316L, ASTM/ASME A/SA351 CF8, CF3, CF8M, CF3M, DIN1.4301, DIN1.4306, DIN1.4401, DIN1.4404, DIN1.4308, DIN1.4408, DIN1.4306, DIN1.4409 2. Carbon Steel ASTM/ASME A/SA105 A/SA105N & A/SA216-WCB, DIN1.0402, DIN1.0460, DIN1.0619 |
Dimension | : | ANSI/ASME B16.5, ANSI/ASME B16.47 Series A (MSS SP-44), ANSI/ASME B16.47 Series B (API 605), ANSI/ASME B16.36, ANSI/ASME B16.48 (API 590) |
Size | : | 1/2" (DN15) ~ 60" (DN1500) |
Pressure | : | Class 150, Class 300, Class 400, Class 600, Class 900, Class1500, Class 2500 |
Type | : | Weld Neck, Threaded, Slip-On, Socket Weld, Lap Joint, Blind, Orifice Flange, Orifice Plate and Restriction Orifice Plate, Spectacle Blind, Spacer, Blanks |
Face Type | : | Flat Face (FF), Raise Face (RF), Ring Joint (RJT) |
Coating | : | Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized |
