ASD 1L Automatic Sliding Door, for Hotel, Industrial Use, Mall, Office, Frame Material : Metal

Listing ID #7223795

Get Latest Price

MOQ 1 Piece
Frame MaterialMetal
ShapeRectangular
Open StyleSliding
Automatic GradeAutomatic
Supply Type Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Product Details

Frame Material Metal
Shape Rectangular
Open Style Sliding
Automatic Grade Automatic
Application Hotel, Industrial Use, Mall, Office
Type Automatic Sliding Door Systems
Country of Origin India
Door Type Single Sliding

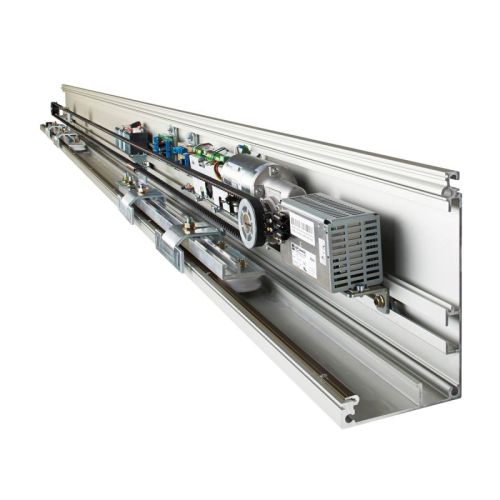

ASD Series Sliding door Operator possesses leading technologies, multi-function, dependable performance while being cost efficient. Automatic sensor sliding door designed for fast action and ease of operation. The driving motor-gearbox integrated technology, featuring powerful driving, reliable operation, high output.

Features

Heavy duty Top Mounted track with timing belt
Install an electro-mechanical lock to ensure the door could be locked more safely.
Vibration-proof structures
1 million times of tests passed
Motor power control system with automatic reversal for user safety
Anti-pinch function makes the operator more safe and more reliable
UPS backup battery ensures the door operating 30 minutes normally if power fails
These doors offer interlocking facility between two doors
Various accessories available: mode selector, lock device, battery pack and sensors

MODEL

MODEL	CODE	LEAF	LEAF WEIGHT	LEAF OPENING	AVERAGE LIFE
ASD 100	64574	Single	120 Kg	600 – 3000 mm	2 Million Cycle
ASD 200	64575	Single	150 Kg	600 – 3000 mm	2 Million Cycle
ASD 300	64576	Single	200 Kg	600 – 3000 mm	2 Million Cycle

Technical Specification

Model	ASD 100	ASD 200	ASD 300
Door Type	Single sliding	Single sliding	Single sliding
Capacity	1 X 120 Kg	1 X 150 Kg	1 X 200 Kg
Door Leaf Width	600 – 3000 mm	600 – 3000 mm	600 – 3000 mm
Power Supply	AC 110-220 V± 10% 50-60 Hz	AC 110-220 V± 10% 50-60 Hz	AC 110-220 V± 10% 50-60 Hz
Power Consumption	70 W	70 W	70 W
Open Speed	100—550mm/s (adjustable)	100—550mm/s (adjustable)	100—550mm/s (adjustable)
Close Speed	100—550mm/s (adjustable)	100—550mm/s (adjustable)	100—550mm/s (adjustable)
Holding Time	0 – 9 sec (adjustable)	0 – 9 sec (adjustable)	0 – 9 sec (adjustable)
Drive Power	150 N	165 N	180 NC
Sliding Noise	55 Db	55 Db	55 Db
Working Temperature	-20℃ +50℃	-20℃ +50℃	-20℃ +50℃
IP Rating	IP 23	IP 23	IP 23
