Contact SupplierMicrocontroller ARM7 LPC214X

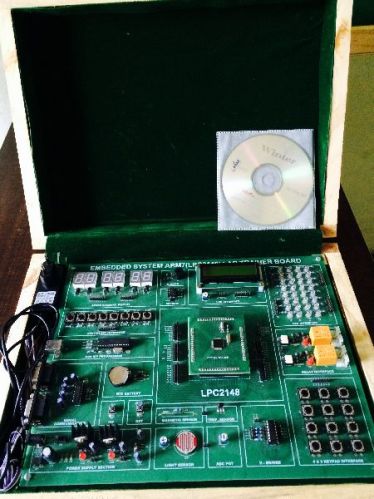

Microcontroller ARM7 Developement Board is designed to emphasize on advancement in the field of Embedded Systems Design. This Board makes the student to understand the ARM 7 microcontroller architecture, Embedded C Language basics, pin configuration and modules interfacing. The Board is designed with hands on experience model.ARM7 Embedded Systems Development kit to experiment various exercises practically.
CONTENT:
Basics of ARM Architecture
RISC Design Methodology
ARM Core, Extensions & families
Architectural Over view
External Interrupt
Memory Mapping
MAM Operating modes
MAM Configuration
VIC Registers
Interrupt Sources
INTERFACINGS:
UART
GPIO
I2C
SPI
PWM DC Motor
KIT CONTAINS:
1 x 8051 Pro Development Board
1 x DB9 Serial Cable
10 x Connecting wires
1 x Documentation CD
FEATURES:
Supports 18 types of 89 series devices
Auto Identify connected hardware and devices
Error checking and verification in-built
Lock of programs in chip supported to prevent program copying
20 and 40 pin ZIF socket on-board
Auto Erase before writing and Auto Verify after writing
Simple and Easy to use
On-board ULN Driver
RS 232 interfacing
Tactile Switch array
5mm bright LED array
3X4 key pad interfacing
ADC interfacing
On board DPDT Relay interfacing
16X2 LCD interfacing
Basic Interfacings Code are Provided
