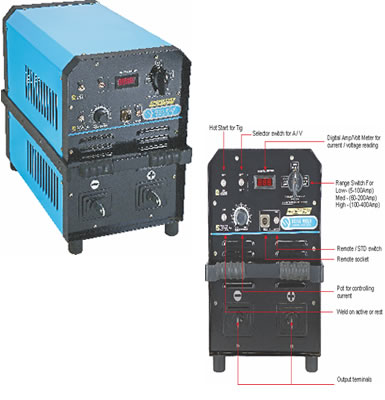

Contact SupplierINVERTEC 400 A Name the task…..heavy machinery, trucks or trailers, locomotives, Tank and pressure vessels, structural steel work, sheet metal fabrication, machine is ready to provide you with exceptional value and return on your investment
Models | INVERTEC-400A |
Rating | 7.5KVA |
No-Load Current (A) | 0.2Amps. |
Characteristics | Constant Current / Step Less |
Supply Voltage. Phaser | 415+10%,3Phase 50 or 60 Hz |
Open Circuit Voltage | 73 Volt DC |
Welding Current Range | 5-400 Amps |
Maximum Input Currents | 12 Amps |
Load Voltage | 21-35 v DC |
Weight (Appr.) | 45Kg |
Class of Insulation | (H) Fiber Glass |
Cooling | Forced Air Cooled |
Dimension (MM) | 610x360x520 (LxWxH) |
