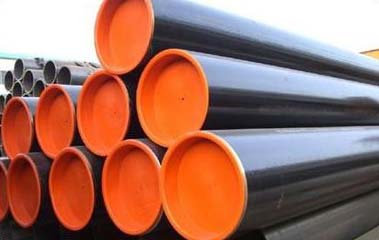

Contact SupplierPurchase from us the widest range of APIX65 Pipe (API 5L X52 PSL 2), which is made from carbon steel, alloy steel and stainless steel. We ensure timely delivery of APIX65 Pipes to buyers all over the world.
CHEMICAL COMPOSITION | ||||||||||||
Mass fraction, based upon heat and product analysis % maximum | CARBON EQUIVALENT a | |||||||||||
% MAXIMUM | ||||||||||||
Cb | Si | Mnb | P | S | V | Nb | Ti | Other | CEIIW | CEPcm | ||
SEAMLESS & WELDED PIPES | ||||||||||||
L320N or X52N | 0.24 | 0.4 | 1.2 | 0.025 | 0.015 | 0.07 | 0.05 | 0.04 | e | 0.43 | 0.25 | |
L320Q or X52Q | 0.18 | 0.45 | 1.4 | 0.025 | 0.015 | 0.05 | 0.05 | 0.04 | e | 0.43 | 0.25 | |
WELDED PIPE | ||||||||||||
L290M OR X52M | 0.22 | 0.45 | 1.3 | 0.025 | 0.015 | 0.05 | 0.05 | 0.04 | e | 0.43 | 0.25 |
MECHANICAL REQUIREMENTS | |||
Y.S | T.S | ELONGATION | |
Mpa(psi) | Mpa(psi) | ||
min | min | min | |
320 (46 400) | 435 (63 100) | f |
IMPACT TEST | |||
AVG. ABSORBED ENERGY | IND. ABSORBED ENERGY | ||
Min.(joules) | Min.(joules) | ||
27 | 20 |
