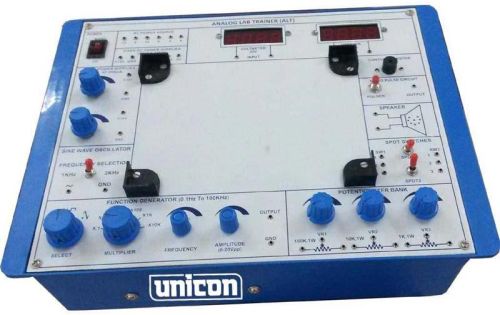

Contact SupplierWe are offering analog lab trainer(alt)
overview: analoglab is intended for elementary as well as advance training of analog electronics.the trainer covers regular analog circuits by solderless interconnections on breadboard and as well as compatible with all optional modules, through use of 2mm brass terminals and patch cords. Various dc regulated power supplies, function generator, dmm, continuity tester etc are in-built. The unit housed in attractive enclosure is supplied with mains cord, patch cords, instruction manual and component set.
Techincal discription:
• two digital meter one is voltmeter for 20v and other is ammeter for 200ma.
• ac power sources 15-0-15 vac and 9-0-9 vac at 650ma.
• dc regulated power sources fixed +12v and +5v at 650ma.
• dc regulated power supplies 0-15v and 0-30v at 250ma
• power supply trainer equipped with 3 pin fused power inlet with 3 pin computer compatible power cord.
• one low frequency speaker is mounted on the board.
• two spdt switched mounted on the board.
• one mono pulse circuit is provided on board.
• 2 nos. Bread board provided with module box easily demountable and mountable. Bread board with size 170mmx62mm , 850 test points
• continuity tester for circuit connectivity.
• function generator 0 to 100 khz is provided on board with sine, square and triangle.
• 3 nos. Potentiometer mounted on the board for general applications, 1k, 10k, 100k with 1w
• one sine wave oscillator is provided on board with 1khz and 2khz frequency switch selectable.
• connections made up with 2mm brass pins.
• trainer supplied with 10 pairs of red and black 2mm patch cords.
• supplied with easy guidelines and full function instruction manual
accessories : mains cord, operating and experimental manual, red & black patch cords (2mm with pin) 10 each, red & black patch cord (pin to pin) 10 each. Wire 2425 swg. 1meter each 5 colour instruction manual : strongly supported by detailed operating instructions.
