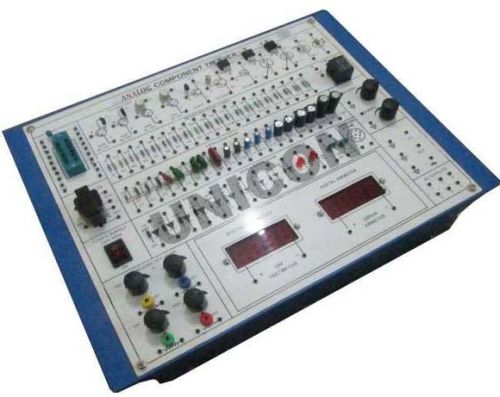

We are offering analog component trainer(act)
specification: trainer comprises power supplies inside the trainer
• power supplies on boards 0-50v, 250 ma and 0-30v,250ma variable
• +15v150ma and +5v150ma fixed supplies provided .
• 4 nos of variable resistor provided on the board.
• one 20 pin vero board on mounted on the board.
• ac power supply 15-0-15v for rectifier applications
• 2 nos. Of digital meters provided on board.
Various components on the trainer set
• 3 pairs of connected 2mm sockets
• 4 rectifier diodes
• 1 oa79 germanium diode
• 3 different values of zener
• n different values resistances
• n different values capacitors
• inductors 1mh, 10mh
• thyristor bank
• sl100 and sk100 pair
• bc547 1nos.
• 1 ldr
• 1 thermistor
• 2 led’s
• 1 relay 12v
• one speaker 8e 14w
• 1 audio transformer
