Ampoule Sticker Labeling Machine, Power : 1.5 Amp.

Listing ID #3828084

  • Power1.5 Amp.
  • Touch ScreenDelta Make Touch screen
  • MicroprocessorMicroprocessor controller by Multipack make
  • AC Drive ( Variable Speed)Delta Make
  • Supply Type Exporter, Supplier
  • Preferred Buyer Location All over the world
View More Details
Send Enquiry

Company Information

  • Member Since 9 Years
  • Nature of Business Manufacturer
  • GST No. 24AANCS9768F1ZQ

Ask for more detail from the seller

Contact Supplier

Product Details no_img_icon

  • Power 1.5 Amp.
  • Pneumatic cylinders SMC / Festo make
  • Label Height 8 mm to 70 mm Standard*
  • AC Drive ( Variable Speed) Delta Make
  • Label Length 12 mm Minimum
  • Speed Up to 300 Labels per minute depending on Product and Label Size. The speed is also depending on stable movement of product on machine conveyor at higher speed.
  • Core Dia. 75/76 mm
  • Product Diameter 14 mm to 85 mm*
  • Gap Between two Labels Appx. 3 mm
  • Stepper Motor Sanyo denki stepper motor – Japan make
  • Microprocessor Microprocessor controller by Multipack make
  • Electrical 220 VAC Single Phase Power Supply (50/60 Hz)
  • Servo Motor Panasonic / Delta Make
  • Labelling accuracy ±1mm
  • Touch Screen Delta Make Touch screen
  • All Electrical / Electronic cables Labb – Germany make
  • Direction of Movement Left to Right from operator side
  • Capacity 0.75 Kw
  • Conveyor height 830-875 mm*
  • PLC Programmable Logic Controller Unit – DELTA Make
  • Sensors ( Product / Label ) Leuze – USA or Sick Germany make
  • Label Roll Dia. 400 mm

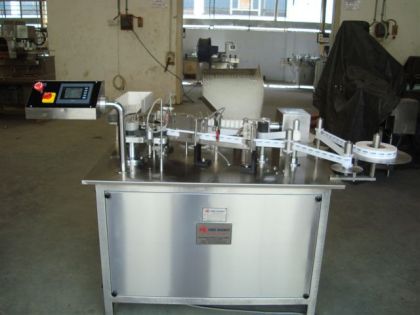

The vial sticker labeling machine is completely automatic and can be operated at extremely high speeds. Moreover this SBSL–300 model is very user friendly, and also has several other outstanding features. In fact, it is built using the most modern micro processor controlled label dispensing system. The vial labeling machine also includes the latest sensing system for labels, and many other products. It is therefore regarded as the ideal machine for labeling round vials, small sized bottles, and several other round objects; which are made from glass, plastic, PET, HDPE, PP, etc.

This swift and sturdy equipment has the ability to label at the most 300 units in a single minute; based on the diameter of the product and size of the label. Further, the roller spacing device of this totally automatic vial sticker labeling machine, results in a simple no parts change system. In addition to this, it also helps you to do away with the star wheel or feed worm for evenly separating the products. Besides this SBSL–300 vial labeler machine even incorporates an exceptional, single point synchronized speed control system. Moreover, it also has a programmed label length detecting system.

This built-in mechanism thus helps to avoid the manual feeding and storing of the label length data into the memory; and again retrieving that information every time, when you want to change the label size and restart the vial labelling machine. As a result this automated system helps to save your time by preventing machine downtime, and also increases the efficiency. These vial labeling machines are even available with an optional tough glass, or acrylic safety cabinet. This advanced vial labelling equipment actually includes all the basic features that are required in a standard machine, to meet the diverse needs of the customers in the local and global market.

No Label Data Input/retrievals require for any Label Size
No Change Parts for Product and Label size
Single Pot On-line Speed Variation control
Synchronized speed of Label Dispensing, Conveyor and Pressing Device
Virtually Maintenance free machine
Easy to change label application height
User Friendly Label Placing Adjustments
Self Protected against Voltage Fluctuations
Suitable for On-Line Inkjet and Contact Coding System
Suitable for Partial, Full Wrap Around and Overlap Labelling
Built In A.C. Variable Frequency Drive System.

Fully Stainless Steel finishes Machine

Label Roll Empty – Machine Stop System with Alarm
Missing Label in Roll – Machine Stop System with Alarm
Special Label Sensor for sensing Transparent Film Labels which does not have any sensing mark on it.
Option of Contact Coder, Hot Foil Coder, HP Cartridge Coder and Inkjet Coder with various speed ranges available.
Toughened Glass or Acrylic Safety Cabinet for Machine
Tower Light showing the machine status / operation
Colour or Mono Touch Screen with PLC for machine operation and showing various error messages and information on display.
Special Sensing system for checking missing label on product
Low Compressed Air – Machine Stop with Alarm system for pneumatically o- operated coding system
Visison System for checking Barcode, presence or absence of Coding or pharma code on labels
Vision System with OCR system for checking coding on labels
Online pneumatically operated product rejection system
Turn Table and Packing Conveyor
