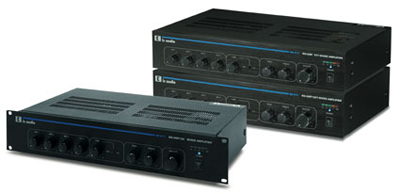

| The mixer amplifier MX AMP 60T is ideal to be connected to up to four microphones (, DIN, Phone Jacks for 3+4) and two line-sources (cinch-, switchable CD/AUX). An additional Sub-D connector is fitted for the M-E 01 desktop microphones. | |
| Features : | |
| Besides the precise volume control for each input channel the MX-AMP 60T offers fine adjustment of bass and treble. | |
| To connect the speakers you can choose between a 100 Volt and an 8 Ωhms output. | |
| The blue power-LED and a five digit LED-VU meter are informing you about the operational readiness and the output level of the 60 Watt powered mixer amplifier. | |
| Modulation and contact controlled priority functions meet almost all requirements you can have for a microphone management. | |
| Of course you can also use these mixing amplifiers without any priority functions. | |
| A second 100 Volt output is only active, when making an announcement for areas in which no background music shall be heard for instance. | |
| The mixer amplifier can be supplied by a 24V emergency power source. | |
| Due to its compact housing (2U) the MX-AMP 60T is ideal for desktop or rack mounting. |
| Technical Specifications | MX-AMP 60T | ||
| Power | 60W | ||
| Frequency Range | MIC1~MIC4: 60Hz~15KHz +3dB AUX/CD: 50Hz~20KHz +3dB Tel: 100Hz~15KHz +3dB |
||
| Inputs | Mic1 / 2: 1mV~250mV, 250W Mic3 / 4: -1mV, 250W Line: -100mV, 47KW AUX: 200mV, 47KW Power in: 1V, 47KW |
||
| Outputs | Music / Speech: 8W / 100V Speech: 100V |
||
| THD | Less than 1% at 1KHz, rated power | ||
| Mains/Battery Voltage | AC 115V/230V 50/60Hz DC 24V (MAX 10% deviation) |
||
| Power Consumption | 200W | ||
| Dimensions | 88 X 430 X 300mm | ||
| Weight | 8.5 Kg. | ||
| Colour | Black | ||
