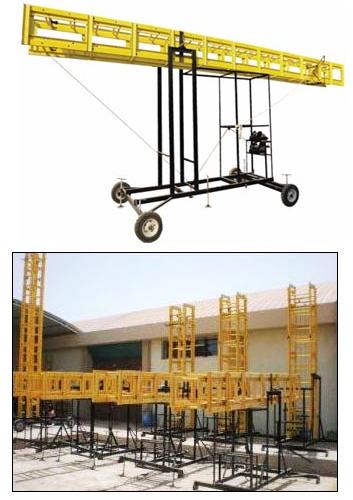

We are the leading Manufacturer and Supplier of Tilting Ladders. Biemco Tilting ladders are customized and available according to the clients needs and specifications. These ladders are most suitable for electric switch yard, factory and a chemical plant. It is most ideal for a small entry gate or door which does not allow a higher length ladder to be carried inside the premises.
Feature
Technical Specifications
| Make | BEIMCO |
| Material | Highly Insulated Frp. Pultruded Section |
| Operation | Which gear with wire rope. |
| Process | Automatic finishes both sides, |
| Working load | 150 kg. |
| Channel size | 75X30X4.5 mm thickness |
| Wheel | 14" Dia |
| Base Width | 22" Inch. (Approx) |
| Step | 25/32 mm dia aluminum/FRP pipe. |
| Rung Space | 12" Inch |
| Insulation | Type tested 100 KV ERDA, Boroda As per IS 2071/IEC 60060. |
| Glass content | 65% glass Content. |
| Bass Paltform | M.S Channel |
| No. of jack | 04 Nos. Jack. |
| Code | Total Height | Width |
|---|---|---|
| BTTL - 4 | 20 feet | 22 Inch |
| BTTL - 6 | 24 feet | 22 Inch |
| BTTL - 8 | 28 feet | 22 Inch |
| BTTL - 10 | 32 feet | 22 Inch |
| BTTL - 12 | 36 feet | 22 Inch |
| BTTL - 14 | 40 feet | 22 Inch |
