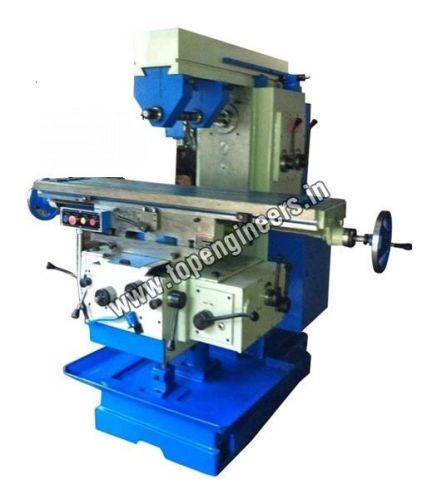

Contact SupplierAll Geared Universal Milling Machine is used for soughing and finishing operations within the range of boring, drilling, facing and milling. We are reckoned among the reputed Manufacturers, Exporters and Suppliers of Universal Milling Machine. It is made using high-grade standardized cast iron and fitted with spindle and gears made from steel. We also customize Universal Milling Machine as per the specified requirements of the factories.
Model | 1 | 1½ | 2 | 3 | 4 |
Table | |||||
Working Table | 1016x227 | 1213x254 | 1270x280 | 1420x304 | 1575x342 |
Swivel | ±45o | ±45o | ±45o | ±45o | ±45o |
T Slot Size | 12.7 | 12.7 | 12.7 | 16 | 16 |
X-Longitudinal Traverse | 480 | 585 | 635 | 735 | 810 |
Y-Cross Feed | 177 | 203 | 254 | 300 | 350 |
Z-Vertical Traverse | 355 | 406 | 510 | 635 | 710 |
Spindle | |||||
Spindle Taper | ISO 40 | ISO 40 | ISO 40 | ISO 40 | ISO 40 |
No. of Spindle Speeds | 6 | 9 | 9/18(optional) | 9/18(optional) | 9/18(optional) |
Range of Spindle Speeds | 55-225 | 40-575 | 35-700 | 35-700 | 35-700 |
Standard Arbour | 25.4 | 25.4 | 25.4 | 25.4 | 25.4 |
Dia of Spindle in Front of Bearing | 70 | 70 | 80 | 90 | 95 |
Feeds | |||||
No. of Longitudinal Feeds | 3/9(optional) | 3/9/18(optional) | 3/9/18(optional) | 3/9/18(optional) | 3/9/18(optional) |
Electricals | |||||
Main Motor | 1 H.P. | 2 H.P. | 2 H.P. | 3 H.P. | 5 H.P. |
Coolent Pump | 0.1 H.P. | 0.1 H.P. | 0.1 H.P. | 0.1 H.P. | 0.1 H.P. |
Dimensions | |||||
Overall Length mm (Approx) | 960 | 17 | 1200 | 1320 | 1450 |
Overall Width mm (Approx) | 560 | 609 | 838 | 890 | 945 |
Overall Height mm (Approx) | 1524 | 1651 | 1778 | 1930 | 2035 |
Weight Kg. (Approx) | 1100 | 1350 | 1850 | 2225 | 3000 |
