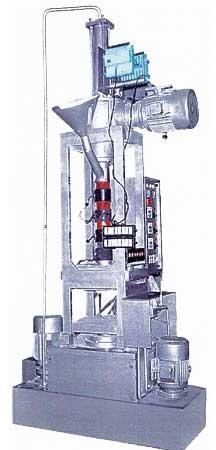

Contact SupplierWe bring forth an exceptionally designed Airmax Vertical Injection Moulding Machine that is known for its rugged construction. This Airmax Vertical Injection Moulding Machine is energy efficient and ensures a longer functional life.
Injection Unit | |
---|---|
Diameter of Screw | 63.5 mm |
Maximum Shot Capacity | 2000 Grms. or According to Customer Requirement |
Plasticizing Capacity | 100 Kgs/hr |
Stock of Screw | 300 mm |
Number of Screw Rotation | 210 r.p.m. |
Absolute Injection Pressure | 17.0 m/t |
Specific Injection Pressure | 500 Kgs/cm2 |
Mould Clamping Unit | |
Clamping Pressure | 35m/t |
Clamping Stroke | 100 mm |
Maximum Mould Size (LxWxH) | 300 X 200 X 225mm |
Electrical Equipments | |
Motor for injection | 7.5 H.P |
Motor for drive of oil pump | 12.5 H.P. |
Motor for driving Plasticizing Screw | 12.5 H.P. |
Heating Capacity | 5 K.W. |
Heating Control (Pyrometer) | 3 No. |
Sunvik | 6 No |
Hydraulic Equipments | |
Hydraulic Pump | 70 Litres/mm |
Hydraulic pump | 50 litres/mm |
Pump Pressure | 180 Kgs/cm2 |
General | |
Floor area of machine | 750 mm X 1500 mm |
Weight of Machine | 2.25 Ton approx. |
