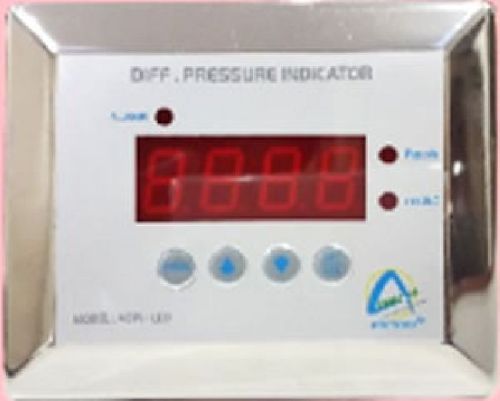

Aerosense Series ADPICDPI Differential Pressure Indicator Transmitter
Series ADPICDPI Differential Pressure Indicator Transmitter
Series CDPIADPI Differential Pressure Indicator Transmitter with circular standard Differential Pressure Gage cut out & 0.5% accuracy of F.S
Product Applications:
Pharma Cleanrooms
HVAC
Environmental
Pharma Machinery
Across filters
Hospital violation rooms
Operation theatres & laboratories
Precision of measurement in HVAC duct pressure application makes the instrument suitable for optimization of energy & thereby its conversation is ventilation systems.
Built in High and Low Buzzer Alarm for process set parameter.
Violation with Acknowledgment key.
Integrated 4 Digit Red LED 7 segment display of standard 0.5" size.
Analog output & RS-485 communication lead to easy integration with variable frequency drives & SCADABMS systems, AHUs.
Pressure Measuring Range:
-10.0 to +10.0 mm.W.C.-25.0 to +25.0 mm. W.C.
-50.0 to -50.0 mm.W.C.0.0 to+100.0 mm. W.C.
-100 to +103 Pascal'-250 to +250 Pascal
Alarms:
Built In High & Low Buzzer Alarm for Process Set Parameter
Violation with Acknowledgment Key
Size:
ADPI- Instrument Encbsure is in 75x70x40 mm. (WxHxD)
CDPI-Standard 114.50
Maximum Over Pressure: 2 Times the rated pressure
Unit Selection: mm.W.CiPascal selectable from front key
Display: Integrated 4 Digit Red LED 7 Segment Display 0.5" High
Sensor: Integrated High Speed Differential Pressure Sensor
Resolution: 1 P3scal0.1 mm w.c
Power 24 Volts D.C. Typical
Output (Optional): 4-20 mAIsolated.' 0-10VDC
Medium: Air or Gases (Non Corrosive)
Accuracy: +1-0.5% of Full Sc3le.
Connection: 2 Nos. Hose Nipples of 4mm. Stainless Steel 3*. the Beck
Communication Optional: Isolated RS485 Modbus Protocol
