AeroBar Ionizing System

Listing ID #4340042

Get Latest Price

Pulsed DC, Steady-state DC or standbySingle-crystal Silicon, replaceable
Green POWER ON, yellow COMMUNICATION, red ALARM2.9H x 2.8W x 12.4L in. (7.4H x 7.1W x 31.5L cm)
ISO 14644-1 Class 12.1H x 1.2W x 22.4, 28.4, 35.7, 44.4, 55.6, 64.4, 75.5, or 84.4L in. (5.3H x 3.1W x 56.9, 72.1, 90.7, 112.8, 141.2, 163.6, 191.8, or 214.4 L cm)
24 VDC, 1.0A, ±5%Connect to up to six Model 5225 AeroBars
Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Product Details

Green POWER ON, yellow COMMUNICATION, red ALARM 2.9H x 2.8W x 12.4L in. (7.4H x 7.1W x 31.5L cm)
24 VDC, 1.0A, ±5% Connect to up to six Model 5225 AeroBars
Pulsed DC, Steady-state DC or standby Single-crystal Silicon, replaceable
24 VAC, 50/60 Hz, 1W (typ), received from the Interface Module
ISO 14644-1 Class 1 2.1H x 1.2W x 22.4, 28.4, 35.7, 44.4, 55.6, 64.4, 75.5, or 84.4L in. (5.3H x 3.1W x 56.9, 72.1, 90.7, 112.8, 141.2, 163.6, 191.8, or 214.4 L cm)
1.5 lb (1.02 kg) for a 22 in (56.9 cm) bar (approx. 6 oz per additional ft/0.17 kg per additional 30 cm)

Cleanroom Compatible for High Ion Output for Fast Neutralization

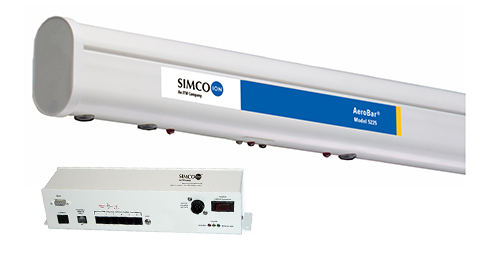

Simco-Ion’s Model 5225 Digital AeroBar with Software Control is designed to handle the demanding requirements of in-tool ionization. With high ion output providing fast neutralization of electric charge on wafers, E78 compliance at the most stringent levels can be achieved.

Complete integration with tool control system
Fully adjustable parameters for each AeroBar
Ion current monitoring
Several lengths available including 3 specifically designed for EFEMs
Single-crystal silicon emitter points

Interface Module Model 5200-IM6T

Powers and supports up to 6 AeroBar Model 5225 Ionizers, FMS output.
