Contact SupplierDescription :

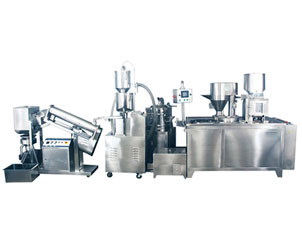

The Latest Semi Automatic Capsule Filling Machine With Line in our range & it is also available in Single Loader & Double loader receptively with an output of 38,000 aprrox per hour in Single Loader & 47,000 per hour in Double Loader and suitable for filling capsule of # 00, 0, 1, 2, 3, 4 & 5 with Powder, Pellets & Granules.
It is comparable to the best because of its outstanding features, It’s innovative design and precision manufacturing meets the requirement of cGMP.
Description | Single Loader | Double Loader |
MOC of Loading Ring | Magnesium alloy (light weight) | Magnesium alloy (light weight) |
Number of holes/Ring | Size 00: 480 Size 0: 600 Size 1,2,3,4,5: 720 |
Size 00: 480 Size 0: 600 Size 1,2,3,4,5: 720 |
OUTPUT | 36,000/hr | 47,000/hr |
Product Contact Parts | S.S. 316 | S.S. 316 |
Loader Drive | 0.25 HP, 380/440 Volts, 3 Ph, 50 Hz | 0.5 HP, 380/440 Volts, 3 Ph, 50 Hz |
Auger Drive | 1.5 HP, 380/440 Volts, 3Ph, 50 Hz | 1.5 HP, 380/440 Volts, 3Ph, 50 Hz |
Filling Table Drive | 0.5 HP, 380/440 Volts, 3 Ph, 50 Hz | 0.5 HP, 380/440 Volts, 3 Ph, 50 Hz |
Vacuum Pump / Vacuum | 3 HP, oil Type 500mm (20") of Hg. At 1000 Ltrs./min. (30 cfm). |
3 HP, oil Type 500mm (20") of Hg. At 1000 Ltrs./min. (30 cfm). |
Compressed Air | 200 Ltrs./min. (8 cfm) at 100 PSI. | 200 Ltrs./min. (8 cfm) at 100 PSI. |
Dimension (Lx WxH) | 1650mm X 1350mm X 1600mm | 1650mm X 1350mm X 1600mm |
Approx weight | 1000 kgs. | 1200 kgs. |
