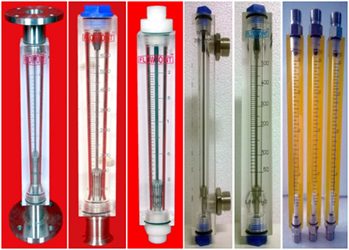

Contact SupplierAcrylic block construction with direct reading scales have white screen printed backs to enhance scale readability. Connections are in-line for easy installation with flanged or screwed connections with several options of materials for the wetted parts. Available in the sizes from 1/2" to 4". Available in various Scale lengths 175-200 mm, 250 mm, 500 mm to suit customer requirements.
Â
Application Fluid Media | : | Air Gases/Water, Liquid |
Measuring Ranges | : | Between 2.5 to 40,000 LPH / 0.018 to 175.5 USGPM of Water at Ambient Temp. Between 0.1 to 300 NM3 / HR / 0.9 to 190 SCFM of Air at Ambient Temperature 760 Torre. |
Line size | : | 1/2" to 4" |
Thread standard | : | Bsp/Npt/Swagelok/push ftting/Nozzle |
Flange Standard | : | ASA 150 RF /BS 10 TABLE D, E, F, /DN, PN |
FLANGE MOC | : | SS316/SS 304/PP/UPVC |
FLOAT MOC | : | SS316/ SS 304/TEFLON |
WETTED PART MOC | : | SS316 /SS 304/MS/TEFLON LINING WITH MS, CS |
BODY MOC | : | /(PMMA) Poly(methyl methacrylate),Transparent Thermoplastic Acrylic Clear with shining Buff. METERING TUBE MOC TRANSPARENT ACRYLIC TUBE DRILLED & MACHINED WITHTAPERED REAMER CUTTER INSIDE THE BODY. |
PACKING ELASTOMER | : | SILICON, VITON, EPDM, NEOPRINE |
FLANGE TO FLANGE DISTANCE | : | 400 MM |
SCALE | : | ENGRAWING ON ACRYLIC BODY IT SELF WITH BLACK MARKING LETTERS ON METERING TUBE |
MOUNTING/INLET & OUTLET | : | VERTICAL BOTTOM TO TOP |
