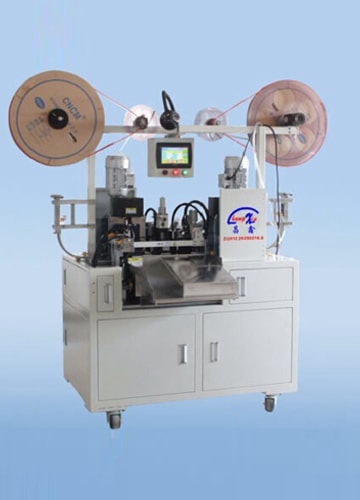

Fully Auto Wire Cut Strip and Crimping Machine

Listing ID #3954764

Get Latest Price

VoltageAC220V/50/60HZ single-phase
Power3300W
WeightApproximately 527kg
Cutting Precision±0.5mm
Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Product Details

Voltage AC220V/50/60HZ single-phase
Power 3300W
Weight Approximately 527kg
Max Ribbon Wire Width 28mm
Striping Length 2mm-10mm
Cutting Length 72mm-9999mm
Model TM-S04
Per Wire Width 0.8mm-2.5mm
Air Pressure 0.4MPa-0.6MPa
Cutting Precision ±0.5mm
Rated Current 15A
Processing Capacity 18000PCS/H,(Max,20P)
Max Ribbon Wire Pin 20P
Measurement 800W*600L*1300H(mm)

This machine has feeding, cutting, striping and crimping all functions and features as below:

Wide range of application
Mainly use for crimping PH.XH, EH, ZH etc. Colorful communication ribbon wire terminal and SCN, SM, VH etc. Strip-type connector ribbon wire terminal
Save cost Feed wire from front side, production come out from back side, all process is fully automatic can save a lot produce cost
Good stability Use eccentric shaft and cam for crimping the production is perfect and high quality.
High precision Stepping motor control cutting and split strip length precision can be 0.1mm
Variety crimping way Can change both heads terminal crimping direction can crimp one side or both side or can leave some pcs to crimp
High efficiency Can crimping 18000 PCS/H (MAX), machine can work 24hrs
Easy operate Touch screen easy to change the crimping applicator
