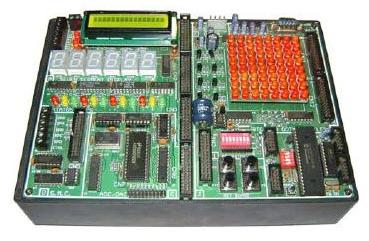

We are a credible Exporter and Supplier of Embedded Trainer Kit (ET-PIC8X). Embedded Trainer Kit (ET-PIC8X) is an embedded trainer for microchip PIC16F877.
Detail

• CPU : Microchip PIC16F877 Microcontroller
• 16x2 LCD module
• Six Seven Segment Displays
• 8x8 LED Matrix Display
• EWSN Status LED's 12 Nos.
• ADC/DAC Interface
• Four Data Switches
• Switch Array
• At24C16 Serial EEPROM
• Stepper Motor Controller Interface

High Performance RISC CPU

• Only 35 single word instructions to learn
• Operating Speed :

• DC - 20 MHz clock input
• DC - 200 ns instruction cycle
• Up to 8K x 14 words of FLASH Program Memory, Up to 368 x 8 bytes of Data Memory (RAM), Up to 256 x 8 bytes of EEPROM Data Memory

Peripheral Features

• Timer0 : 8-bit timer/counter with 8-bit prescaler
• Timer1 : 16-bit timer/counter with prescaler, can be incremented during SLEEP via external crystal/clock
• Timer2 : 8-bit timer/counter with 8-bit period register, prescaler and postscaler
• Two Capture, Compare, PWM modules

• Capture is 16-bit, max. resolution is 12.5 ns
• Compare is 16-bit, max. resolution is 200 ns
• PWM max. resolution is 10-bit
• Synchronous Serial Port (SSP) with SPI^TM (Master mode) and I2C^TM (Master/Slave)
• Universal Synchronous Asynchronous Receiver Transmitter (USART/ SCI) with 9-bit address detection
• Parallel Slave Port (PSP) 8-bits wide, with external RD, WR and CS controls (40/44-pin only)
• Brown-out detection circuitry for Brown-out Reset (BOR)

Analog Features

• 10-bit, up to 8 channel Analog-to-Digital Converter (A/D)
• Brown-out Reset (BOR)
• Analog Comparator module with :

• Two analog comparators
• Programmable on-chip voltage reference (VREF) module
• Programmable input multiplexing from device inputs and internal voltage reference
• Comparator outputs are externally accessible

We are a credible Exporter and Supplier of Embedded Trainer Kit (ET-PIC8X). Embedded Trainer Kit (ET-PIC8X) is an embedded trainer for microchip PIC16F877.
Detail

• CPU : Microchip PIC16F877 Microcontroller
• 16x2 LCD module
• Six Seven Segment Displays
• 8x8 LED Matrix Display
• EWSN Status LED's 12 Nos.
• ADC/DAC Interface
• Four Data Switches
• Switch Array
• At24C16 Serial EEPROM
• Stepper Motor Controller Interface

High Performance RISC CPU

• Only 35 single word instructions to learn
• Operating Speed :

• DC - 20 MHz clock input
• DC - 200 ns instruction cycle
• Up to 8K x 14 words of FLASH Program Memory, Up to 368 x 8 bytes of Data Memory (RAM), Up to 256 x 8 bytes of EEPROM Data Memory

Peripheral Features

• Timer0 : 8-bit timer/counter with 8-bit prescaler
• Timer1 : 16-bit timer/counter with prescaler, can be incremented during SLEEP via external crystal/clock
• Timer2 : 8-bit timer/counter with 8-bit period register, prescaler and postscaler
• Two Capture, Compare, PWM modules

• Capture is 16-bit, max. resolution is 12.5 ns
• Compare is 16-bit, max. resolution is 200 ns
• PWM max. resolution is 10-bit
• Synchronous Serial Port (SSP) with SPI^TM (Master mode) and I2C^TM (Master/Slave)
• Universal Synchronous Asynchronous Receiver Transmitter (USART/ SCI) with 9-bit address detection
• Parallel Slave Port (PSP) 8-bits wide, with external RD, WR and CS controls (40/44-pin only)
• Brown-out detection circuitry for Brown-out Reset (BOR)

Analog Features

• 10-bit, up to 8 channel Analog-to-Digital Converter (A/D)
• Brown-out Reset (BOR)
• Analog Comparator module with :

• Two analog comparators
• Programmable on-chip voltage reference (VREF) module
• Programmable input multiplexing from device inputs and internal voltage reference
• Comparator outputs are externally accessible
