Contact SupplierThe sensor contains a highly hygroscopic solid electrolyte that absorbs moisture present in the sample and creates an electrolysis current directly proportional to the moisture content.
A knowledge of the gas flow rate and the current in the cell gives an absolute measure of the moisture contained in the sample gas. The sensor is suitable for all corrosive & other gases and materials in contact with the sample are glass / teflon, platinum or rhodium, and the selected material of the sensor holder.
The special transfer of the sample-gas through the sensor, combined with a high quality surface provides fast response and minimizes the tailing effect. This benefit is especially important when monitoring low ppm-concentration. Sensor is a regeneratable and can be expedileously done at site.

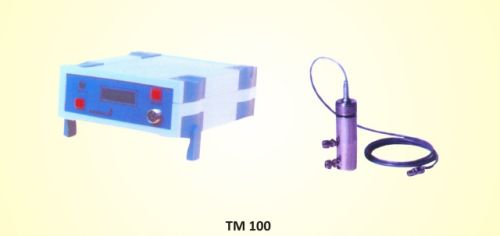

This fully microprocessor controlled precision moisture analyser is a high technology solid state unit designed to operate in rough field service is available as a portable, field mounting rack / panel mounting versions. The high quality LC-display shows th moisture in ppm.
Measurement Range | 0-10, 100, 1000, 2000 PPM or Dew Point -90 deg.C to 0 deg.C |
---|---|
Sensitivity | 0.1 PPM |
Accuracy. | +/-2 % of Reading or 0.4 PPMv |
Accuracy | +/-2 % of Reading or 0.4 PPMv |
Response Time | 90% within 60 sec. |
Display type | Alphanumeric LCD/LED optional |
Sample Connections | 1/8in. Tube |
Sample Pressure | 0.25 to 10 Bar |
Sample Flow | 100cc/min-controlled |
Sample & Ambient Temp. | 0-50 deg.C |
Sensor Body. | 196 X 100 X 40 mm ABS ENCLOSURE |
WEIGHT | 1/2 KG |
ADDITIONAL FEATURES (OPTIONAL) | |
Computer Interface | RS-232 link for Data in ASCII Delimited Format, 2400 Baud 8 Bits, 1 Stop, 1 Start, No Parity. |
Data Logger | 32 Kbyte, Non-Volatile Memory |
ACCESSORIES | Charger working on 230V AC 50 Hz, Instruction manual, calibration test certificate, Leather carrying case, 5LPM flow meter, 2 mtr teflon tubing |
