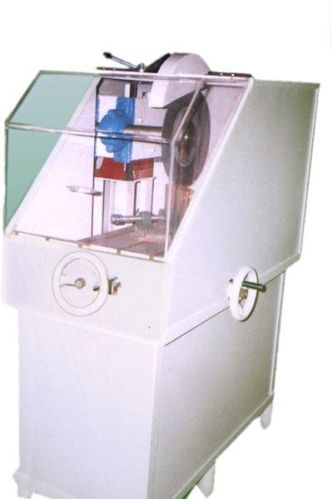

Applications : The cast components are cut-off at the in-gate from the main sprue or runner bar. The Abrasive gate cut-off machine is used for this purpose. The ACM provides for a quick clean cut and is cost effective to use. The machine has appropriate job clamping facility and is completely enclosed in a safety enclosure with dust removal port to be attached to a dust collector.The machine is provided with an X-axis stroke 300 mm and Y-axis stroke 100 mm table, on which the job is clamped to enable accurate cut location.Pneumatic tree clamping device is provided to firmly clamp the cast tree in place while the components are being cut off. A 3 jaw chuck with rotary indexing is provided to rotate the clamped tree to required cutting position. Standard size “T” slots are also provided to clamp irregular shaped jobs suitably.The X axis movement of the job mounting table is controlled by way of hand wheel. This enables the operator to locate cut as required. The Y-axis travel is 100mm. The longitudinal movement is controlled by hand wheel. This enables the operator to precisely locate the cut.The Cut-off wheel and drive motor are mounted on an oscillating arm. The oscillation is actuated by a pneumatic cylinder. The cut-feed is controlled by this cylinder. The whole machine is housed within a cabinet. The cabinet is provided with appropriate door and fitted with safety glass. The cut-off wheel is enclosed with a facility for easy changing of wheelsEquipment Model No:ACMTo cut Steel and alloy steel investment castings from the main sprue at the in-gate.
