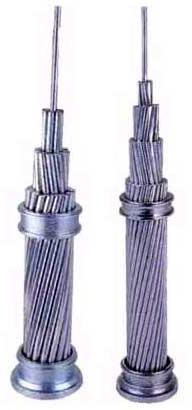

Contact SupplierHaving years of experience in this domain, we share glorious credentials for manufacturing & supplying AAC Conductors in the Indian market. We have developed an in-house production facility for manufacturing them in varied specifications. Apart from this, we pay special attention towards their packaging in order to render safe deliveries. Buyers can rely on us for reasonable prices and timely deliveries.
Code | Nominal Aluminium Area mm² | Stranding & Wire Diameter mm | Approx Over all Dia mm | Approx Mass Kg/Km | Calculated Resistance at 20 C Max / KM | Approx Calculated Breaking Load KN | Approx. Calculated Breaking Load (kN) |
---|---|---|---|---|---|---|---|
Gnat | 25 | 7/2.21 | 6.63 | 74 | 1.093 | 4.52 | 4.52 |
Ant | 50 | 7/3.10 | 9.30 | 145 | 0.556 | 8.25 | 8.25 |
Wasp | 100 | 7/4.39 | 13.17 | 290 | 0.277 | 15.96 | 15.96 |
Special | 150 | 19/3.18 | 15.90 | 415 | 0.915 | 23.28 | 23.28 |
Spider | 240 | 19/3.99 | 19.95 | 654 | 0.1244 | 35.74 | 35.74 |
Butterfly | 300 | 19/4.65 | 23.25 | 888 | 0.01971 | 48.74 | 48.74 |
