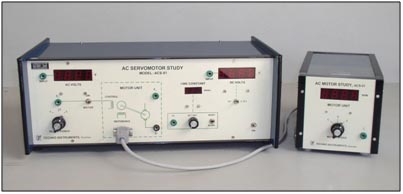

A.c. Servomotor Study,Motor Controller, Control Equipment, Engineering Training Equipment

Listing ID #214197

We offer A.C. Servomotor Study usefull for control laboratory experiments. Two phase a.c. servomotor is one of the very important electromechanical actuators having applications in the area of control systems. The study of its operating principle and features form a part of the first course on automatic control systems in electrical engineering curriculum. It's small size, low inertia and almost noise and frictionless operation makes the a.c. servomotor particularly attractive in aircraft and spacecraft applications.
The characteristics of an a.c. motor is usually non-linear. To simplify the analysis a linearized model is developed. The experimental work revolves around determination of the parameters of the motor and thus its transfer function.
Important subsystems of the unit includes,
(a) an integrated speed sensor with 4-digit display in r.p.m.
(b) an electrical loading system to compute torque
(c) a time-constant measurement circuit with 3-digit display in milli seconds
(d) a three step a.c. source with built-in r.m.s. voltmeter, and
(e) a digital voltmeter on the panel for load measurement
The unit has been designed such that expensive equipment like storage CRO is not needed. Also the hassle of direct torque measurement using spring balance etc. is avoided by linearization of the motor characteristics analytically.
Highlights of Equipment
Torque computation through electrical loading
Determination of motor para-meters - inertia and friction
Digital display of time constant
Transfer function evaluation
Experiments
Inertia and friction parameters
Time constant
Transfer function
Features and Specifications
2-phase a.c. servomotor - 12V/ 50Hz per phase
Small generator for loading
4-digit speed display
3-digit time constant display
3½ digit r.m.s. voltmeter
3½ digit d.c. panel meter
Voltage regulated internal supplies
Detailed literature with sample results
The experiment is complete in all respect.
