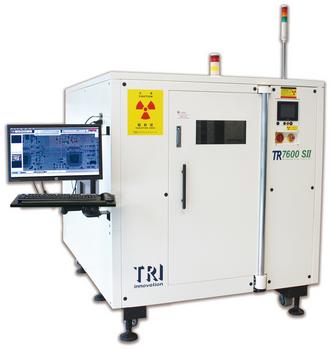

Automated X ray Inspection System, Certification : ISO 9001:2008 Certified, CE

Listing ID #4160185

2 Cr - 3 Cr / Piece

Get Latest Price

MOQ 1 Piece
TypeX Ray Inspection System, X Ray Inspection Machine
CertificationISO 9001:2008 Certified, CE
Weight4000-5000kg
Voltage220V
Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Product Details

Type X Ray Inspection System, X Ray Inspection Machine
Certification ISO 9001:2008 Certified, CE
Weight 4000-5000kg
Voltage 220V
Automatic Grade Fully Automatic
Power 9-12kw
Driven Type Pneumatic, Mechanical, Hydraulic
Color White
Brand Name Test Research Inc
Application Advanced automated Xray
Condition New
Warranty 1 year

INTRODUCTION

Featuring advanced automated 3D X-ray inspection of PCBAs, the TR7600 SII high speed scanning with multiple resolutions in a single program. Automatic Pass/Fail determination uses 2D + 3D images provided using 6-axis control and ultra-high-speed multiple angle cameras with automatic board warp compensation. TR7600 SII is ideal for inspection of fine pitch 01005 components, μBGAs, 2/3-layer PoPs, LGAs and other bottom termination components on both sides of the PCBA, including complex Pressfit connectors.

AXI Key Features

High speed cameras – 3x faster inspection speed than TR7600
X-ray tube with adjustable output up to 130 kV/300 µA
Block scan for selective scanning of components in higher resolutions
Multiple angle cameras for 2D + 3D slice images using Digital Tomosynthesis
Exclusive Image enhancement technology for clear Pressfit inspection Rapid Programming Interface with Auto Library and Offline Editing Precision
Height Repeatability
Calibration target (at 3σ) < 1% on TRI certification target
Solder GR&R (± 50% Tolerance)

Additional Information

Payment Terms L/CT/T
Port of Dispatch Taiwan
Delivery Time 8 weeks
