8 PORT GIGABIT PORT ISOLATION SWITCH

Listing ID #3881754

Get Latest Price

MAC Address 8K8K
Switching Capacity16G
Network Media10Base-T：Cat. 3 UTP or above 100Base-T：Cat.5 UTP or above 1000Base-T：Cat.5e UTP or above
Standards and ProtocolIEEE802.3，IEEE 802.3u，IEEE 802.3ab
Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Product Details

Switching Capacity 16G
MAC Address 8K 8K
Network Media 10Base-T：Cat. 3 UTP or above 100Base-T：Cat.5 UTP or above 1000Base-T：Cat.5e UTP or above
Model TSW 1108W
Ports 8
Standards and Protocol IEEE802.3，IEEE 802.3u，IEEE 802.3ab

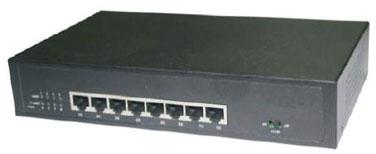

Telenet’s 8 Port Gigabit Port Isolation Switch, TSW1108W provides 8 10/100/1000Mbps RJ45 ports. All RJ45 ports support Auto-MDI/MDIX function. It provides a simple, economical, high performance, seamless solution to upgrade to 1000M networking connection. It provides one “VLAN” switch, the switch is off at default, and at this state the switch can be used as a normal 8 ports gigabit switch. When switch on the “VLAN” switch, every port can communicate with the uplink port, and the other ports are separate with each other except the uplink port. The port 8 is default as the uplink port. It provides a simple, economical, high performance and flexible solution for your networking construction

Feature:

Complies with IEEE802.3, IEEE 802.3u and IEEE802.3ab standard
Adopts IEEE802.3x for full duplex and Backpressure for half duplex
8 10/100/1000Mbps auto-negotiation RJ-45 ports (Auto MDI/MDIX)
Adopts store-forward technology, providing full wire-speed to assure integrity of data
Supports Jumbo Frame transmission
MAC address auto-learning and auto-aging
Independent bandwidth for each port, and real non-blocking data transfer
Realize port isolation with just one VLAN,s switch
12 V DC power supply
Sleek desktop metal case

Forward and Filter Rate

10Mbps：14880pps
100Mbps：148800pps
1000Mbps：1488000pps

LED Indication Link/Act
Other

Link/Act
Power

Dimension

(L×W×H) 230×147×40mm

Environment

Operation Temperature：0ºC-40º

No. of Ethernet Devices that can be powered

Single

Input

Input：12V DC
