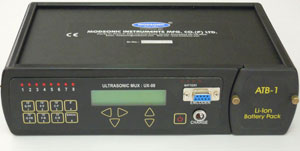

8 Channels Ultrasonic Multiplexer

Listing ID #1414479

We offer 8 Channels Ultrasonic Multiplexer Mux-8.
TECHNICAL SPECIFICATION
No of Channel 8 separate channel with individual adjustment of delay and gain control.
Display LCD Display 16 * 2 Alphanumeric for indication of parameter value.
Gain Adjustment from -10dB to 30dB in step of 1db increment for each channel.
Delay Adjustment from 0 to 99mm in step of 1mm increment for each channel.
Memory 10 calibration set-up can be storerecall.
Operating Mode Factory set T+R T-R internally selected.
Channel Status Indication 8 LED's for indication of onoff status of channel.
Keyboard Sealed membrane keyboard with direct access key for channel selection.
Battery Li-Ion battery pack 14.4VDC, 4Ah, gives 8 hours continuous operation from fully charged battery. Full charging is done within 4.5 hours.
Operating temperature 0 to 55 C.
Dimensions 152 x 255 x 70(HxWxD).
Weight 1.8 KG.
