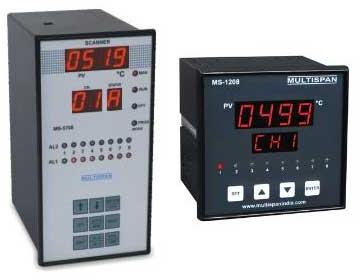

8 Channel Scanner

Listing ID #1300045

Get Latest Price

Weight500g
Operating Temperature0-55 Degree C
Time Delay1 to 99 Secs
Accuracy0.25% FS
Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Product Details

Weight 500g
Operating Temperature 0-55 Degree C
Storage Temperature 0-80 Degree C
Humidity 30-95% RH
Time Delay 1 to 99 Secs
Accuracy 0.25% FS

We are a prime Supplier ofÂ 8 Channel ScannerÂ in India. We procure 8 Channel Scanner from the eminent vendors of the market who use the latest technology in its fabrication. Our 8 Channel Scanner is extensively used for measuring the temperature of any eight sources through a single instrument. We offer 8 Channel Scanner at market leading prices.
Attributes

Accurate results
Efficient performance
Reliable operations
Cost effective
Long functioning life

Specifications

Model	MS-5708	MS-1208
Display	4 digit 0.56" seven segment LED display for process value. 2 digit 0.56" seven segment LED display for Channel number. 1 digit 0.56" seven segment LED display for Process Status.	4 digit 0.56" seven segment LED display for process value. 3 digit 0.56" seven segment LED display for Channel number.
Input	4 to 20 mA, 0 to 10V DC, RTD (PT-100 2W/3W) Or Thermocouple(J, K)	Thermocouple J OR K Type
Display Scan Time	Adjustable from 2 to 99 sec	Adjustable from 2 to 99 sec
Appearance & Dimensions	192 x 96 x 144 mm	96 x 96 x 75 mm
Panel Cutout	188 x 92 mm	92 x 92 mm
Case	M.S. sheet metal case with ABS molded Front & Back	Plastic case with ABS molded Front & Back
Output	6 or 8 relays	-
Features	Grouping of inputs is possible. There can be maximum of 4 groups	-
Features	Auto / Manual Channel Scanning Facility
Optional Features	RS- 485 interface Available
