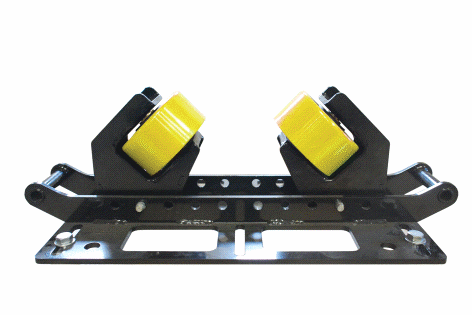

TAG Pipe Rack Rollers are used for a variety of Industries and applications, typically for installation of pipes into racks at Refineries, Power Stations and other Industrial Plants. All the TAG Pipe Rack Rollers are designed to be lightweight, with I Beam clamps for quick installation and various roller head options so that all sizes and weights of pipe can be easily, safely and efficiently installed.
Features & Advantages
| Part No. | T2110 | T2110HD | T2125 | T2125HD | T2135 | TZ13SHD |
| Load Capacity | 1 Ton | 3 Tons | 5 Tons | 10 Tons | 5 Tons | 10 Tons |
| 1,016kg | 3,048kg | 5,080kg | 10,160kg | 5,080kg | 10,160kg | |
| 2,2401bs | 6,720Ibs | 11,200lbs | 22,400lbs | 11,2001bs | 22,4001bs | |
| Pipe Diameter Range | 2" - 24" | 2" - 24" | 4" -48" | 4" - 48" | 16" - 60" | 16" - 60" |
| 50 - 61Dmm | 50- 610mm | 100 - 1220mm | 100 - 1220mm | 400 - 1530mm | 400 - 1530mm | |
| Complete Unit Weight | 27kg | 43kg | 59kg | 82kg | 66kg | 91kg |
| 59Ibs | 95Ibs | 130Ibs | 180Ibs | 1451bs | 200lbs | |
| Footprint L x W x H | 16.5" x 20.5" x 8" | 16.5" x 20.5" x8" | 19" x 30" x 8.75" | 19" x 30" x 8.75" | 21" x 34" x 8.75" | 21" x 34" x 8.75" |
| 41.9 x 52 x 20.3cm | 41.9 x S2 x 20.3cm | 48.3 x 76.2 x 22.2cm | 48.3 x 76.2 x 22.2cm | 53.3 x 86.4 x 22.2cm | 53.3 x 86.4 x 22.2cm | |
| Beam Flange | 6" - 12" | 6" - 12" | 6" - 12" | 6" - 12" | 6" - 12" | 6" - 12" |
| Width Range | 150 x 300mm | 150 x 300mm | 150 x 300mm | 150 x 300mm | 150 x 300mm | 150 x 300mm |
