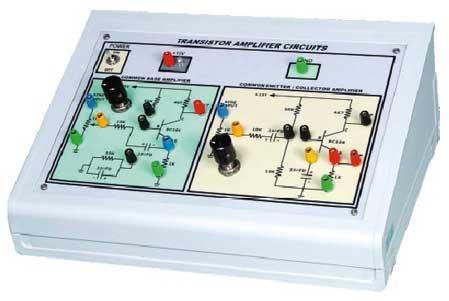

Transistor Amplifier Circuits

Listing ID #1480468

The Transistor Amplifier Circuits manufactured by us are extensively used to demonstrate the operation and important characteristics of various amplifiers. The common collector amplifier has a gain of less than one, while the common-base amplifier has a gain of more than 150. The Transistor Amplifier Circuits weigh 500 gms and have the dimensions of 27cms x 17cms x 10cms. The Amplifier Circuit has a built-in regulated power supply of 15V/300mA and an input Supply of 230 VAC/50Hz mains operated.
Used for :

• The common-emitter amplifier
• The common-base amplifier
• The common collector amplifier

• Uncomplicated designing
• Convenient to use
• Efficient functioning
