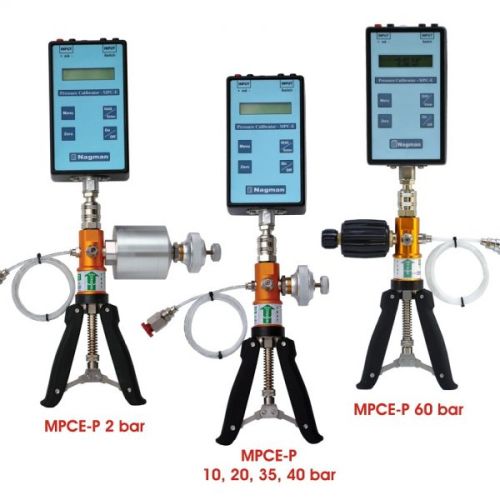

Pneumatic pressure calibrator

Pneumatic pressure calibrator

Listing ID #4120360

Get Latest Price
  • Accuracy±0.1% F.S.
  • Weight5 Kg.
  • Instrument Dimension420 x 340 x 120 mm (L x B x H)
  • Ranges0.85 to 2 / 10 / 20 / 35 / 40 / 60 bar
  • Supply Type Manufacturer, Exporter, Supplier
  • Preferred Buyer Location All over the world
View More Details
Send Enquiry

Company Information

Nagman Instruments
National Highway, Chennai, Tamil Nadu
View Number
  • Member Since 19 Years
  • Nature of Business Retailer
  • Year of Establishment 1972

Ask for more detail from the seller

Contact Supplier
View Company Details

Product Details no_img_icon

  • Accuracy ±0.1% F.S.
  • Weight 5 Kg.
  • Over Pressure Alarm 105% FS (Audio / Visual)
  • Display 2 line, 16 characters LCD (Alpha-Numeric)
  • mA Input 0 to 25 mA DC (Active)
  • Pressure Generation Thro’ Matching Pneumatic Hand Pump with Fine Adjustment Vernier & Release Valve
  • Resolution Minimum 4½ digits
  • Pressure Switch Test Maximum 5V DC
  • Engineering Units Mpa, Atm, Bar, Kg/cm2, mH2O, PSI, inHg, ftH2O, Kpa, inH2O, mmHg, cmH2O
  • Battery Type & Life 9 Volts; Approx. 12 Hours
  • Ranges 0.85 to 2 / 10 / 20 / 35 / 40 / 60 bar
  • Instrument Dimension 420 x 340 x 120 mm (L x B x H)
  • Low Battery Indication Provided

• 2 Line Alpha Numeric Display

• Touch Membrane Keypad

• Selectable Engineering Pressure Units

• DC Current Measurement : 0 to 25 mA (Active)

• Switch Test capability & Zero Offset facility

• Audio & Visual Alarms for Over Pressure

• Pressure Transducer – all Media compatible with SS316

• 9V Battery operated with ‘Low Battery’ indication

• Digital Pressure Indicator with matching Pneumatic Hand Pump with Vernier


Interested in this product? Ask for more details & Latest Price from seller
Send Enquiry

Company Details close-icon

COMPANY PROFILE
Nagman, an ISO 9001:2008 Certified Company was established in the year 1972 started manufacturing RTD / TC sensors, moved on to pioneer the concept of Portable Calibrators for Temperature, Pressure & Signal selling over 50,000 so far.
Nagman, expanding on their technical expertise on portables, developed Calibration Work Stations / Test Benches – Primary & Secondary Standard Calibration Test Benches, Temperature Calibration Test Benches, Electrical & Electronics Calibration Test Benches, Multifunction/Multi-parameter Calibration Test Bench Workstations and Computer Aided Calibration Systems – comparable in design, performance, features and accuracies to reputed/established International brands. Have supplied more than 1,500 Test Benches to major industries in India & Worldwide.
  • Nature of Business Manufacturer / Exporter / Supplier / Retailer
  • Number of Employees 100 - 150
  • Year of Establishment 1972
