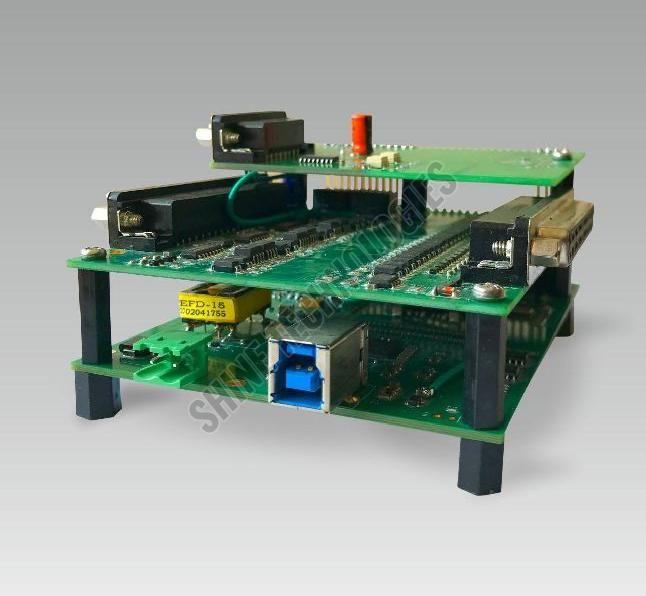

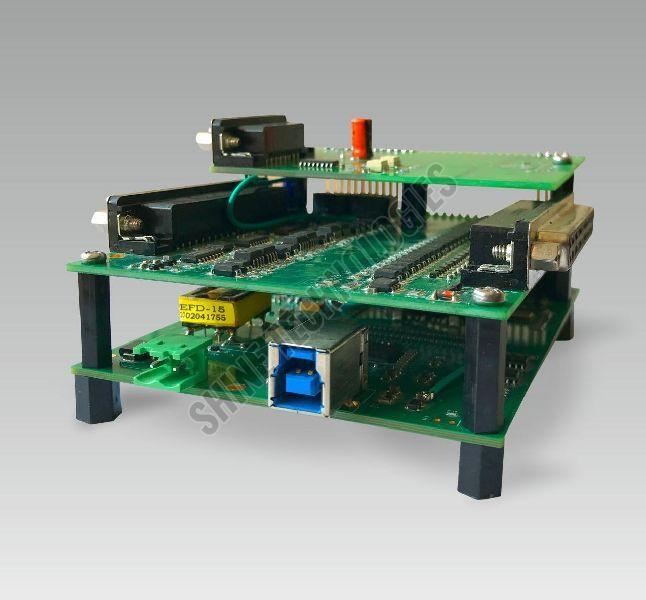

5 Axis Plus Galvo Motion Control Card

Listing ID #6063048

GENERAL FACILITIES

• Super Speed USB3.0 Connection
• Transfer Data Rate up to 5 Gbit/s (625 MB/s)
• Xilinx Spartan- 6 FPGA
• Individual Pulse, Direction, Home Sense, Alarm Sense, End Limit Positive, End Limit Negative, Software Limits, High Speed Limit
• All Sensors and Limits Logic can be changed through Programming
• All Sensors and Limits can be Enable or Disable.
• 8 Digital Inputs
• 8 Digital Outputs
• 1 Analog Output ( 0 to 10 V)
• 1 PWM Output
• 2 Axis and 3 Axis Interpolation
• Buffer Run Command for, Axis Movement, Delay, Digital Output, Digital Input, Analog Output, PWM
• DLL for Windows 7 32bit / 64bit, Windows 10 32bit / 64bit for user Application.

GALVO

• Supports XY2-100 Protocol
• Interpolation in Galvo Possible
• Speed Control of Galvo Speed
• Run in Buffer Command
• Read the Galvo Movement Status
• Control Through 15pin D-sub Connector

FIBER CONTROL

• Supports Industries Most Fiber
• Control Through External 25pin D- Sub Connector
• Frequency Setting
• Power Setting
• Emergency Stop / Release
• MO On/Off
• Laser On / Off
• Red Beam On / Off
