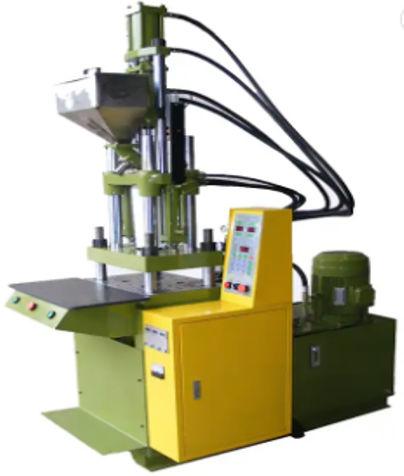

45 Ton Injection Moulding Machine, Packaging Type : Wooden Box

Listing ID #7379271

9.30 Lakh / piece
Get Latest Price
  • MOQ 1 Piece
  • ConditionNew
  • Packaging TypeWooden Box
  • TypeTube Head Injection
  • Warranty1 Year
  • Supply Type Exporter
  • Preferred Buyer Location All over the world
View More Details
Send Enquiry

Company Information

Sector 63, Noida, Uttar Pradesh
View Number
  • Member Since 6 Years
  • Nature of Business Supplier
  • GST No. 09AVMPA7464P1ZT

Ask for more detail from the seller

Contact Supplier

Product Details no_img_icon

  • Condition New
  • Packaging Type Wooden Box
  • Type Tube Head Injection
  • Warranty 1 Year
  • Air Consumption no
  • Country of Origin Guangdong, China
  • Material PPT, PA6, LCP, POM,PC, PVC, TPE, TPU, TPR,PU etc plastic material
  • Machine Body Material MS Iron
  • Plasticising Capacity(g/s) 90
  • Pump Motor Power 5.5kw/7.5HP
  • Ejector Stroke 35mm
  • Injection Weight 3.6 OZ
  • Warranty of Core Components 1 Year
  • Injection Rate (g/s) 90 g/s
  • Weight (Kg) 1450
  • Ejector Force(kN) 15 kN
  • Power (kW) 5.5 kW
  • Machine Type Hydraulic
  • Function LCD Screen
  • Screw Speed (RPM) 1 - 190 RPM
  • Style Vertical
  • Opening Stroke 200 mm
  • Ejector Stroke(mm) 35 mm
  • Mold Height(mm) 70 - 370 mm
  • Theoretical Shot Volume(cm³) 81 cm³
  • Ejector Force 1.76 Tons
  • Screw Diameter (mm) 35 mm
  • Open Stroke(mm) 200 mm
  • Key Selling Points Automatic
  • Distance between Tie Bars 470 x 280 mm
  • Ejector Number 1
  • Injection Weight (g) 106 g
  • Model Number CY-350ST-PP
  • Clamp Force 45 T
  • Screw L/D Ratio 23

Screw Diameter mm 38
Injection Pressure kgf/cm2 1785-2376
Injection Capacity cm3 110-132
Injection Weight gr 100-140
oz 3.8-4.5
Injection Rate cc/s 58-68
Screw Speed RPM 0-150
Screw Stroke mm 120
Nozzle Stroke mm 200
Nozzle Contact Force tf 2.8
Clamping Unit
Clamping System -- Hydraulic
Clamping Force FT 45
Clamping Stroke mm 215
Max Mould Space mm 385
Min Mould Height mm 170
Overall Size Of Platens(HXV) mm 600x400
Space Between Columns(HXV) mm 400x240
Hydraulic Ejector Force FT 1.7


Additional Information

  • Port of Dispatch transport
  • Packaging Details Wooden Package
  • Delivery Time 3 to 15
