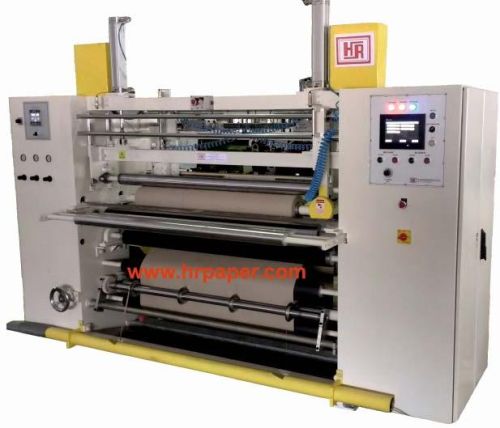

Contact SupplierWe are offering this model consists of shaft less winding system which enables to have more faster production output. The machine has fully intergraded plc base controls, touch screen, etc. Ones the start button is pressed all operations are automatically done. The machine is equipped with auto tension pneumatic brake. Air shaft at unwind unit for easy and quick change over of reels. It has shaft less rewind system for 2”& 3” core id to increase the production. It also has automatic pneumatic cross cutting system. Online printing unit can also be incorporated. To see video click this link https:www.youtube.comwatch?v=ndcgtorsb6m
technical specifications
working width 50" (1270 mm)
floor space 20" (500 mm) 5.5 ft l x 9.5 ft b x 6 ft. H
working speed variable upto 150 mtrs min.
max. Unwind dia 40” 50"
max. Wind dia 12" (304 mm)
core id at unwinding 3” (76 mm) paper core
core id at winding 2" (50 mm) 3” (76 mm)
minimum slit 4" (100 mm)
power required 6 hp 440v 50hz
type of material paper thermal paper 50 to 200 gsm
optional auto tension brake, web guiding, pneumatic reel loading & air shaft at unwind
