With us, buyers can stay completely assured for top-notch products as we make use of the premium material and modern work methods for preparing them. Besides, the material is sourced from the genuine places. We can be entrusted for delivering the orders within the promised time frame as we have sophisticated transportation facilities.

Features :

• Heavy Duty spindle Running in a Set of 4 Taper Roller bearing Ball Bearings Eliminating Vibration due to hanging spindle
• Box table Having its four Faces machined with T Slots on one end V groove On Other Side
• All Main gears made by MS And Main parts From En steel
• Elongated bottom for greater rigidity to reduce vibration
• Heavy-duty column with heavily ribbed base plate with in Built Coolant Tank

Specifications :

• Drilling Capacity in Steel  - 40 MMMax/Min Distance Spindle Center To Column  - 850/360Machined Area Of base  - 925 x 740â��Dia Of Column  - 170Spindle Travel  - 225 MMMax Distance Spindle Nose to Base - 950Vertical adjustment of Arm  - 1028Size Of Box Table - 350 x 310 x 310No. of spindle Speeds - 8 speed (80 to 1700 RPM)Spindle Bore - MT-4Drill Motor  - 1.5 HP (960) 50 HZ 3 Phase
• Elevating Motor - 0.5 HP (1440) 50 HZ 3 PhaseNet Weight  - 850 Kg
• Over All Height  - 1875Belt Size - B-23 B-46
• Standard Accessories  - Drill Drift , Motor Pulley 2 Nos

Additional Information :

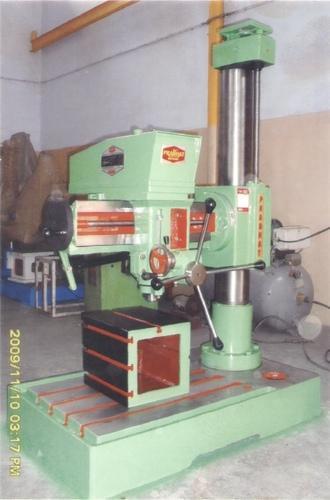

• Item Code - 40MM-Radial-Drilling-Machine
• Pay Mode Terms - T/T (Bank Transfer)
• Port of Dispatch - Nava Sheva
• Production Capacity - 15 Machines
• Delivery Time - 15 Days
• Packaging Details - Standard Wooden Box Packing
