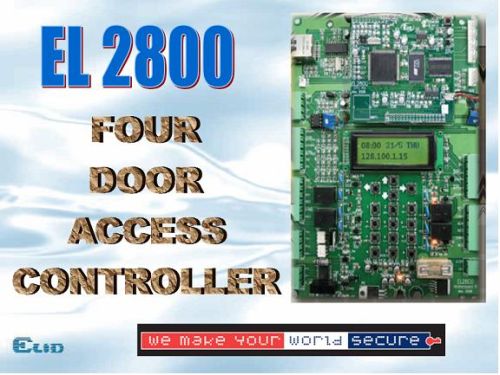

EL2800 series
Access Control System
EL2800 is an advanced multi-door IP controller. EL2800 uses native LAN (not a terminal server which converts RS232 to LAN). Consequently, it is like a PC and can take full advantage of web access.
EL2800 provides access control functions for 4 doors. Entry and Exit readers are RS485 based and are connected by 4 wires in daisy-chain mode. Door sense signals and exit push button signals are directly wired to EL2800 main board.
Storage capacity: Stores up to 3,000 user-IDs and 2,000 offline transactions per door
Display and keypad: 122x32 GLCD display and 16-key keypad
Reader type: Supports Weigand format (FreeWiegand, 26-bit, HID)
Caters for timers and time zones, limiting access and users to different times of the day
Provision for Anti-passback, Automatic Lock Release Time Zone and Automatic PIN Disable Time Zone
Firmware can be updated in-circuit, through the serial download from the PC
Simple programming set-up with scroll-down menu within the controller
Equipped with a calendar clock chip to give an accurate date and time
Battery back-up for internal data storage and time clock
Communication interface: Multi-drop or RS485 or Ethernet
Uses standard Internet Browser for configuration & set-up
Dimensions: 208(H)x154(W)x30(D) mm
Weight: 800g
