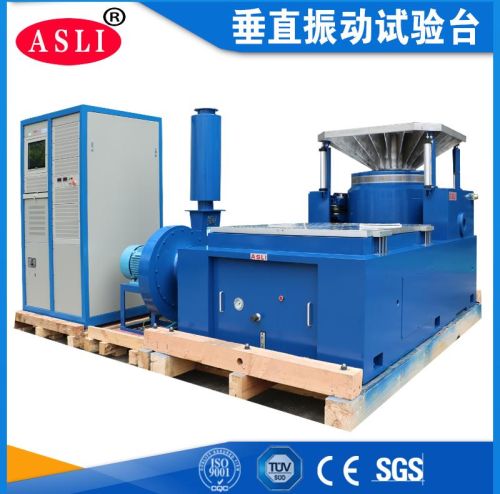

ISTA 1A 2A 3A large 100mm displacement high frequency vibration test machine

Listing ID #6224863

ISTA 1A 2A 3A large 100mm displacement high frequency vibration test machine

high frequency vibration test machine is mainly used for product vibration and shock environmental test environment, environmental stress screening test, reliability test, tests may be needed to do for aerospace, communications, electronics, electrical, communications, home appliances and other areas of the products. It is a test platform that meets all kinds of test specifications, and can be executed including IEC, MIL-STD, JIS, ASTM and other specifications.

high frequency vibration machine Parameter:

Maximum sine excitation force 5000Kg.f peak

The biggest random vibration force 5000Kg.f r.ms

The biggest shock vibration force 10000Kg.f peak

Frequency Range DC~4000 Hz

Maximum displacement 75mm p-p(peak-to-peak value)

Maximum speed 1.8m/s

Maximum acceleration 100G(980 m/s2)

First resonant frequency 3500Hz

Maximum load 750kg

Moving coil diameter (working mesa diameter) Diameter of 450 mm

The quality of moving coil 50kg

Product features

* Flexible suspension system and straight line guide, strong bearing capacity, good guidance performance and high stability.

* The static stiffness of the central load airbag is large, the dynamic stiffness is small, the bearing capacity is strong, and the dynamic performance is excellent.

* rapid self-examination diagnosis and chain protection, high safety and reliability;

* The air bag isolating and damping device makes the vibrator do not need the special foundation, perfectly reproduces the vibration wave and reduces the vibration transmission.

* Provide different use of horizontal and vertical expansion platforms;

* It can be used with all kinds of vibration controllers, and the operation is simple.

horizontal stand features:

Within small loading bench to realize higher acceleration and working frequency, to improve the loading capacity and performance of whole machine bench.

Horizontal bench and vibration bench are integral type, with perfect structure, convenience to install and adjust.

Static pressure track, V-shape, with capacity of slope-resistant and bias-loading resistant.

Built-in oil pump, good structure and easy operating.
