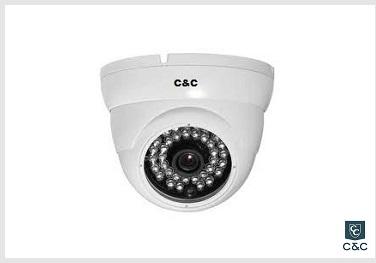

Contact SupplierWe are offering 36 ir dome camera.
Image sensor 13" hd-dis (high definition digital image sensor)
effective pixels 1280(h) x960(v)
horizontal resolution color: 1000tvl
electronic shutter 150s~1100,000s 160s~1100,000s
synchronization internal
mini. Illumination 0.1lux@f1.2(0lux ir led on)
sn ratio >60db(agc off)
video output 1vp-p composite output (75ωbnc)
camera features
max. Ir leds length 20m, 36 smart ir
daynight auto(icr) color bw
backlight compensation blc dwdr
white balance auto
gain control auto
lens
focal length 3.6mm (2.8mm, 3.6mm, 6mm optional)
lens type manual
mount type m12
general
power supply dc12v±10%
power consumption max. 3w
working environment -40°c~+60°c 20%~80%rh
dimensions φ113.6mm × 85.4mm
weight 250g
