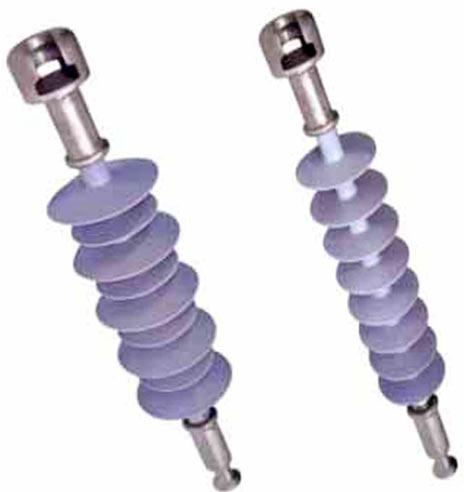

33 / 36 KV Silicon Polymeric Composite Disc Insulator (B & S Type)

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

ADVANTAGE : Light Weight High Mechanical StrengthEasy to Install Vandal Proof Resist tracking resulting in lower line losses Reduced leakage currentExcellent in salt, fog and severely contaminated....

View More Details

Send Enquiry

Product Details

ADVANTAGE :

Light Weight
High Mechanical Strength
Easy to Install
Vandal Proof
Resist tracking resulting in lower line losses
Reduced leakage current
Excellent in salt, fog and severely contaminated environment
No ultra violet, corona ozone degrading
Excellent hydrophobic
High pollution flash over voltage
Wide range of service temperature -35 to +80Â° C
Better Aesthetics

Specifications

Product Code	System Voltage	Specified Mechanical Load in KN	Dry Arc in mm	Creepage Distance in mm	Dry Power Frequency Voltage with stand in KV	Wet Power Frequency Voltage with stand in KV	Lightning Impulse with stand in KV	Visible Discharge Test
BI-33/36/45/B&S	33 KV	45 KN	370Â±5	900	137	111	248	27
BI-33/36/70/B&S	33 KV	70 KN	370Â±5	900	137	111	248	27
BI-33/36/B&S/H.C	33 KV	70/90 KN	375Â±5	1175	154	135	248	27
