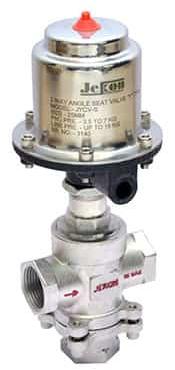

3 Way Mixing Diverting Control Valves

3 Way Mixing Diverting Control Valves

Listing ID #6097086

Get Latest Price
  • MediaAir, Water, Oil, Gas, Steam & Chemical
  • Gland PackingTeflon ‘V’ seals, backed by graphite wiper seal (Self Compensating)
  • LeakageOn steam – Continues 155°C, Intermittent 180°C Maximum
  • End ConnectionsFemale Screwed to BSP or NPT / Flange / Triclover
  • Supply Type Manufacturer, Exporter, Supplier, Trader
  • Preferred Buyer Location All over the world
View More Details
Send Enquiry

Company Information

Jekon Controls
Saraspur, Ahmedabad, Gujarat
View Number
  • Member Since 7 Years
  • Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Product Details no_img_icon

  • Media Air, Water, Oil, Gas, Steam & Chemical
  • Working Fluid Press Drop tight / bubble tight, class IV ANSI B 16, 104, 1976
  • Body ASTM A351 Gr. CF8 / CF8M / CF3M
  • Seat Soft Seat (PTFE)
  • Trim / Spindle Stainless Steel 304/316/316L
  • Gland Packing Teflon ‘V’ seals, backed by graphite wiper seal (Self Compensating)
  • Operating Temp. (High Temp. above 180°C – On Request)
  • Size 1/2″ to 3″ Screwed / Flange
  • End Connections Female Screwed to BSP or NPT / Flange / Triclover
  • Steam Packing PTFE upto 180°C, Self-compensating (Spring Loaded)
  • Body Test Pressure 42 Bar Maximum
  • Leakage On steam – Continues 155°C, Intermittent 180°C Maximum

Size Range : 1/2″ To 2″
Actuator
Body SS 304 Pressed
Cover Flange ASTM A351 Gr. Cf8 (SS 304) Investment Die-Cast
Spring Spring Steel (IS 4454 Gr. III)
Port Connection 1/4″ BSP (NPT on request)
Operating Pressure 3.5 to 7 Bar
Position Indicator Nylon
Operating Cycles 350 to 650 Cycles / Hr.
Media Dry Lubricated Air / Innert Gasses Asten Moisture Separators are advised to use in line
Dimensions
Valve Type Size L L1 B B1 C D
MM In.
JYCV.S-15 15 1/2″ 85 151 50 83 185 102
JYCV.S-20 20 3/4″ 110 185 66 130.5 194 102
JYCV.S-25 25 1″ 120 189 72 106.5 204 102
JYCV.S-40 40 1-1/2″ 150 232 91 132 285 134
JYCV.S-50 50 2″ 190 283 100 146.5 292 164
