Contact SupplierTrue Sine Wave output High Frequency PWM design using MOSFETs INVERTER / UPS Mode availability as per user requirement Extremely Compact size Easy to Install and Operate Extended battery backups possible In built Manual Bypass switch arrangement. Optional Battery Reverse Protection. Output Short Circuit Protection
Unique Max Is A Professionally Managed Organisation Contributing In The Field Of Elecdtonic Power Back Up Systems Through It's Design And Manufacturing Capabilities Of On Line UPS,Home UPS, SFC, Stabilizers , Chargers EtcThe Company also deal in all types of Batteries systems,.The Strenght Ties In It's Capability Design And Manufacture the Products in house for all types of requirements Products Are Manufactured In Iso 9001 Certified Facitiies.
Application
Data Centers, It & Ites, Solar/Wind Power Gen,. Building Management ,Education ,Telecom Equipment Satellite Earth Stations ,Banking ,Defense, R & D Centers, Biomedical Equipment ,Industrial Instrumentation, Machine Tools, Photo Copying Machines, Home Ups, Other Specific Applications
Highlights

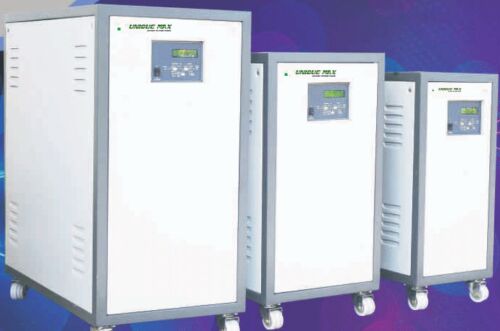

Unique Max Sine Wave Solar Inverter/ UPS Range-600VA-4.8 KVA
Standard Rating | |||
1 Kva-10 Kva | 7.5 Kva-30 Kva | 15 Kva-150 Kva | |
Input | |||
Voltage | 230 V Ac-1 Ph | 415 V Ac -3 Ph 4 Wire | 415 V Ac -3 Ph 4 Wire |
Opening Range | 170 V- 265v | 345 V- 475 V | 345 V- 475 V |
Frequency | 50hz | ||
Power Factor | > 0.8 | >0.92 | |
Output | |||
Rating | 1/2/3/5/7.5/ Kva | 10/15/20/25/30 Kva | 15/20/25/30/40/45/50/60 |
75/80/100/120/150 Kva | |||
Voltage | 220/230 V Ac 400/415 V Ac | ||
Regulation | +/-1% | ||
Power Factor | 0.8 Lag To Unity | ||
Crest Factor | 0.1256944444 | ||
Frequency | 50/60 Hz | ||
Frequency Regulation | +/-0.1% | ||
Wave Form | True Sine Wave | ||
Harmonic Distortion | Thd < 3% | ||
Overload Rating | 150% For 30 Seconds | ||
Transient Response | +/-5% For Full Load Change | ||
Response Time | Recovery To +/- 2% Wihtin 5msec | ||
Dc Link | |||
Normal Dc Voltage | 2, 3 Kva :48-144 V | 10, 15 Kva : 240/360 V | 15 Kva : 240/360 V |
5 Kva : 120/144/180v | 20 Kva : 300/360 V | 20 Kva : 300/360 V | |
7.5, 10 Kva : 180/240 V | 25, 30 Kva : 360 V | 25 Kva & Above :36 V | |
Dc Bus Volts Ripple | <2% | ||
Battery Type | Vrla Sealed Maintenance Free (SMF)/Lead Acid Tubular (Flooded Type)/Nil-Cd | ||
Insolution | Dc Circuit Breaker | ||
Efficiency (Typical) | |||
Inverter Efficiency | >95% | ||
Overall Efficiency | >92% | ||
Protection | |||
Rectifier | I/P Ac Over Voltage/Undert Voltage | ||
Dc Over Voltage | |||
Battery Charging Over Current | |||
I/P Single Phasing | |||
I/Pphase Reversal | |||
Inverter | O/P Over Voltage/Under Voltage | ||
O/P Overload | |||
O/P Short-Curcuit | |||
O/P Under Voltage | |||
Over Temperature |
Standard Rating | |||
1 Kva-10 Kva | 7.5 Kva-30 Kva | 15 Kva-150 Kva | |
Audio Alarm | |||
Rectifier Trip | |||
Overload | |||
Mains Fail | |||
Battery Low With Pre- Alarrm | |||
System Trip | |||
Metering | Multifunction Lcd Display To Read The Following Parameters With User Friendly Mimic Diagram | ||
I/P Voltage | 1ph Parameters Upto 30 Kva | ||
I/P Frequency | |||
Battery Voltage | |||
Battery Charging/Diuscharging Current | |||
Op Voltage | |||
Op Current | |||
Op Frequency | |||
Physical | |||
Size | 260(W)X545(D)X500(H)Mm (1-5 Kva) |
325(W)X650(D)X650(H)Mm (20-30kva) |
400(W)X900(D)X850(H)Mm(15 Kva) |
325(W)X650(D)X650(H)Mm (6-10kva) |
400(W)X800(D)X850(H)Mm (20-30 Kva) |
400(W)X900(D)X950(H)Mm(20-40 Kva) | |
800(W)X800(D)X800(H)Mm (50-100 Kva)-A |
|||
A+ 1000(W)X800(D)X1800(H0 Mm (120-150 Kva) |
|||
Enclosure | Ip 21 | ||
Cable Entry | Bottom | ||
Colour | Siemens Grey | ||
Eniviroment | |||
Operating Temperature | 0 To 45Ëš | ||
Storage | -10 To 70Ëš | ||
Humidity | Upto 95% Rh (non-condensing) | ||
Cooling | Forced Air Cooling | ||
Noise | <55 Db | <60 Db | <65 Db |
Altitude | <3000 Mtr. Above Mean Sea Level. | ||
Optional Features | |||
Enclosure | Ip 42/ Industrial Grade | ||
Cable Entry | Top | ||
Input Power Factor | 0.99 | ||
Opertating Temperature | 50Ëš C | ||
Auto Cahngeover To Brypass Supply (Static Bypass) | |||
Remote Indicating Panel | |||
Computer Interface Data Logger And Self Diagnostics Feature |
|||
Snmp | |||
Output Frequency 400hz | |||
Auto/Manual Battery Test/Discharge Facility | |||
Parallel Load Sharing / N + 1 Configuration Is Available | |||
Individual Battery Monitoring System | |||
19* Rack Mounting Type Models Available | |||
Iec Conformance On Request | |||
Eco Mode With 98% Efficiency |
