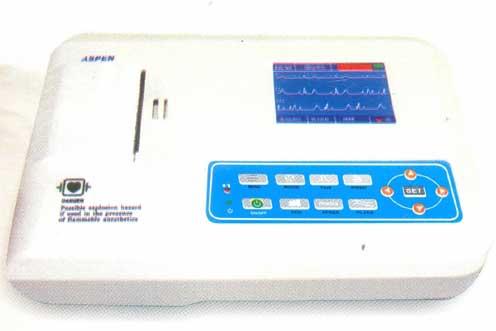

3 Channel Interpretive ECG Recorder

Listing ID #233618

Get Latest Price

Supply Type Supplier
Preferred Buyer Location All over the world

The 3 Channel Interpretive ECG Recorder is supplied by us in the market that is available under the brand name Aspen. The 3 Channel Interpretive ECG Recorder offered by us widely appreciated and....

View More Details

Send Enquiry

Product Details

The 3 Channel Interpretive ECG Recorder is supplied by us in the market that is available under the brand name Aspen. The 3 Channel Interpretive ECG Recorder offered by us widely appreciated and recommended by various health experts for Automatic measurement and interpretation of ECG waveform. The clients can avail this ECG Recorder at very comprehensive price. Features

Digital 3 Channel Interpretive ECG Recorder
Three channel digital ECG recorder with 3.5 TFT Screen
Digital signal processor for effective inhibition of baseline drift, interference, as well automatic position of base line
Automatic measurement and interpretation of ECG waveform
Power supply both AC & DC (built- in rechargeable lithium battery)
Can store 1000 patients data
Thermal array (8dotsmm) recorder
Measurement parameters: HR, P-R interval, P-Duration, QRS Duration, Q-T interval, Q-Tc, P Axis, T duration, QRS Axis, TAxis, R (V5), S (V1), R (V5) +S(V1)
Safety level corresponds to Class I, Type CF

Technical Specifications

Lead	Standard 12 leads
Operating Mode	Manual & Auto Mode
Filter	AC, DFT & EMG Filter
CMMR	>60 dB >100dB (add filter in use)
Input Circuit	Isolated; Floating, Protection Circuit against Defibrillator effect
Input Impedance	50M
Calibration Voltage	lmV±3%
Time Constant	>3.2s
Display	3.5" TFT screen
Frequency Response	0.05 - 150Hz
Noise Level	≤15uVp
Paper Speed	2S, 50mmls(±S%)
Sensitivity	Auto 5,10,20 mmlmV
Recorder	High resolution thermal printer
Paper specification	80mm (W) x 20m (L)
Power Supply	AC:220VIlIOV; SO/60Hz DC: 7.4V(3700mAH) rechargeable Li. battery
Dimensions	31Smm x 21Smm x 77mm
Net Weight	2.2Skg

Environment Conditions

Particular	Operation	Storage & Transportation
Temperature	+5^oC - +35^oC	-10^oC - +55^oC
Relative Humidity	≤ 80%	≤ 95%
Atmospheric Pressure	86kPa - 106kPa	SOkPa - 106kPa
